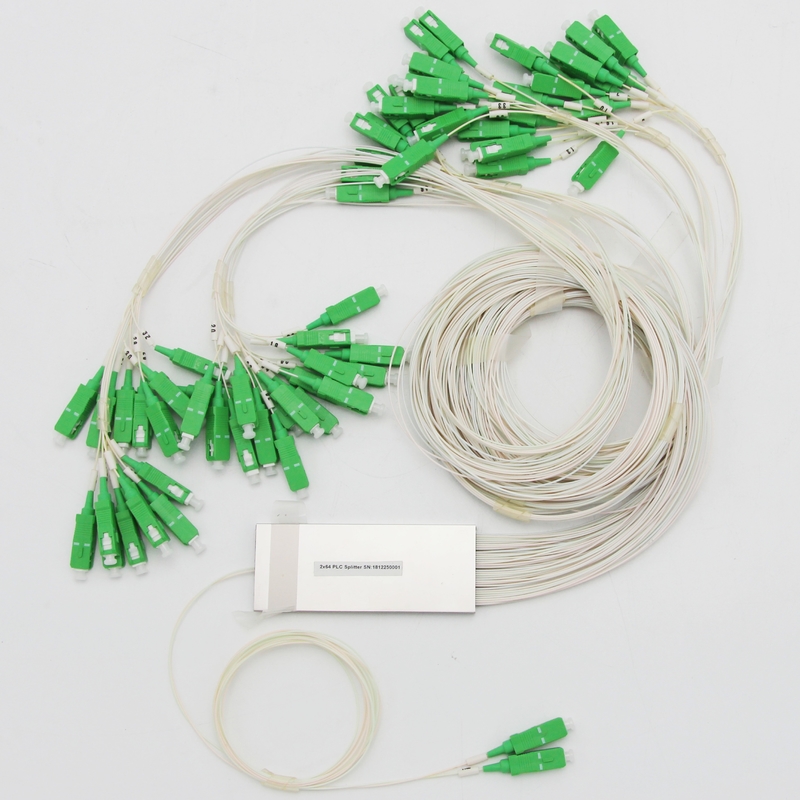

2X64 MINI MODULE FIBER OPTICAL PLC SPLITTER WITH SC/APC CONNECTOR TELCORDIA 1209&1201 STANDARD LOW LOSS HIGH RELIABILITY
Dawnergy PLC splitters are single mode splitters with an equal split ratio from one or two input fibers to multiple output fibers, which are based on PLC (planar light wave circuit) technology and provide cost effective light distribution solution with small form factor.
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10 | 13.1 | 16.2 | 20 |
| Max(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.6/13.7 | 16.5/16.8 | 20.5/21.0 | |
| Uniformity (dB) | Typical | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 |
| Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Return Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 (+/-0.05) or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
| WDL (dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| TDL (dB) (-40~85℃) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| Packaging Size(mm) | Bare Splitter | 40x4x4 | 50x7x4 | 60x12x4 | |||
| Mini Module | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
| Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.7 | 7 | 10.8 | 13.6 | 16.8 | 20.5 |
| Max(P/S) | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.4/17.7 | 21.0/21.5 | |
| Uniformity (dB) | Typical | 0.5 | 1 | 1 | 1.2 | 1.5 | 2.2 |
| Max | 0.6 | 1.2 | 1.5 | 1.8 | 2 | 2.7 | |
| PDL (dB) | Typical | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
| Return Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 +/-0.05 or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
| WDL (dB) | Typical | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Max | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 | |
| TDL (dB) (-40~85℃) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| Packaging Size(mm) | Bare Splitter | 50x7x4 | 60x7x4 | 70x12x4 | |||
| Mini Module | 60x7x4 | 80x12x5 | 100x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
| Notes: 1. Measurements are done at room temperature. Connector loss is excluded in the above specifications. | |||||||
| 2. S=Standard grade, P=Premium grade | |||||||
