1x9 Uneven PLC Splitter

Cassette PLC Splitters Configuration (11ports SC/APC adapters)

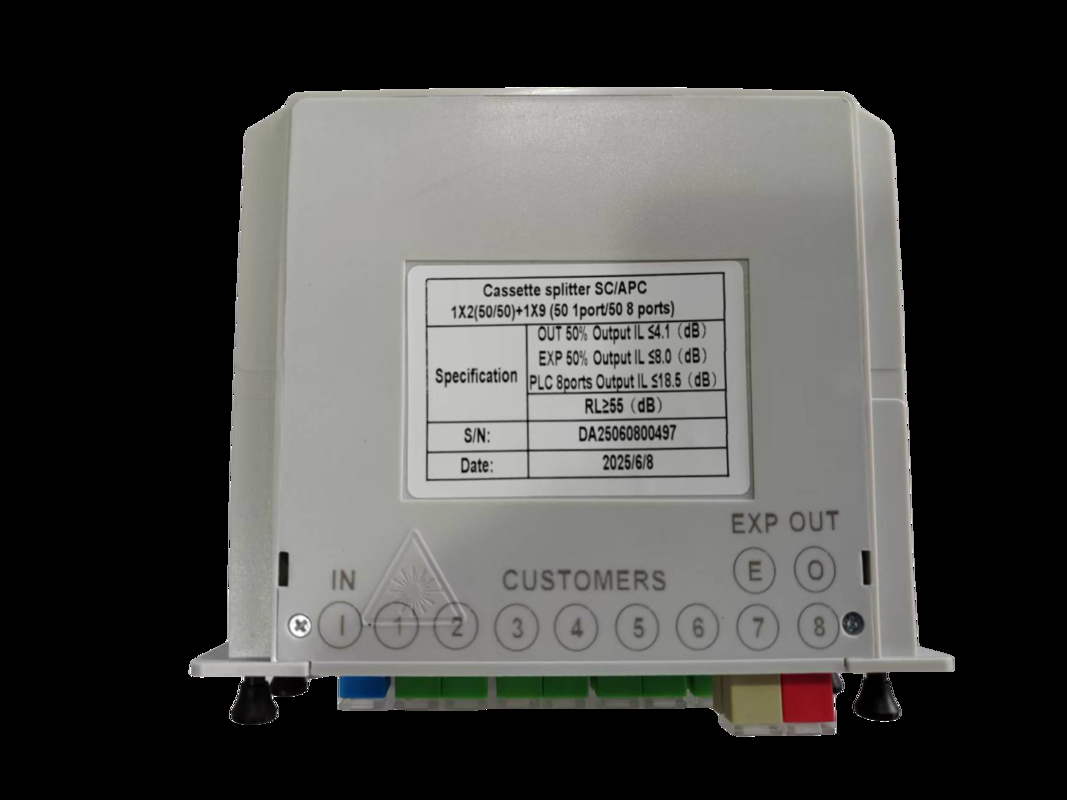

Cassette Drawing(130x100x50mm)

Different color for Input and output adapters,picture just for refrence

1)     ODB 1:2, 1:8, 10 ports

Cassette option1: splitter 1:9 (50 1 port /50 8 ports)

Cassette option2: splitters 1:2(50/50), 1:8

PLC Splitter Specification

Out 1x8   Out Cascade

IL with Connector (dB) ≤14.5         4.1

RL with Connector (dB) ≥55

Uniformity ≤0.8; Directivity ≥55; Fiber Type G.657A1; Adapter Inset Loss (dB) ≤0.25

Operating Wavelength (nm) 1260-1650nm; Adapter SC/APC

Standard Compliance Telcordia GR-1209, IEC 61753-1, Telcordia GR-1221

2)     ODB 1:2, 1:2, 1:8(30/70), 11ports and ODB 1:2, 1:2, 1:8(30/70) 11 or 14ports/HUB/SUB

Cassette option1 splitters 1:2(70/30), 1:9 (50 1port/50 8 ports)

Cassette option2 splitters 1:2(70/30), 1:2, 1:8

PLC Splitter Specification

Out 1x8 Out Cascade Out Expansion

IL with Connector (dB) ≤20.5        2.2        10.1

RL with Connector (dB) ≥55

Uniformity ≤0.8; Directivity ≥55; Fiber Type G.657A1; Adapter Inset Loss (dB) ≤0.25

Operating Wavelength (nm) 1260-1650nm; Adapter SC/APC

Standard Compliance Telcordia GR-1209, IEC 61753-1, Telcordia GR-1221

3)    ODB 1:2,1:2,1:8(50:50), 11 ports

Cassette option1 splitters 1:2(50/50), 1:9 (50 1port/50 8 ports)

Cassette option2 splitters 1:2(50/50), 1:2, 1:8

PLC Splitter Specification

Out 1x8 Out Cascade Out Expansion

IL with Connector (dB) ≤18.5        4.1        8.0

RL with Connector (dB) ≥55

Uniformity ≤0.8; Directivity ≥55; Fiber Type G.657A1; Adapter Inset Loss (dB) ≤0.25

Operating Wavelength (nm) 1260-1650nm; Adapter SC/APC

Standard Compliance Telcordia GR-1209, IEC 61753-1, Telcordia GR-1221

4)    Expansion box

Cassette splitter 1:8
