MPO PLC Splitter, MPO Fiber Optic Splitter gpon optical splitter
  • MPO PLC Splitter, MPO Fiber Optic Splitter  gpon optical splitter
  • MPO PLC Splitter, MPO Fiber Optic Splitter  gpon optical splitter
  • MPO PLC Splitter, MPO Fiber Optic Splitter  gpon optical splitter

MPO PLC Splitter, MPO Fiber Optic Splitter gpon optical splitter

Place of Origin CHINA
Brand Name DAWNERGY
Certification Anatel,CE,ROHS
Model Number Hybrid Fiber Type
Product Details
Name:
MPO PLC Splitter, MPO Fiber Optic Splitter
Fiber Type:
Hybrid Fiber Type Fiber Optical PLC Splitter With MPO Connector
Fiber Length:
1(+/- 0.05)meter Or Custom Specified
Operating Wavelength(nm):
1260-1650
Mode Type:
SM – Single Mode
Operating Temperature:
-25°C ~ +75°C
Storage Temperature:
-25°C ~ +75°C
Color:
Multi-color
Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
1.9-23.9 USD
Packaging Details
Carton Box
Delivery Time
5 working days
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
10k Per Day
Product Description

PLC Splitter- Hybrid Type with MPO Connector

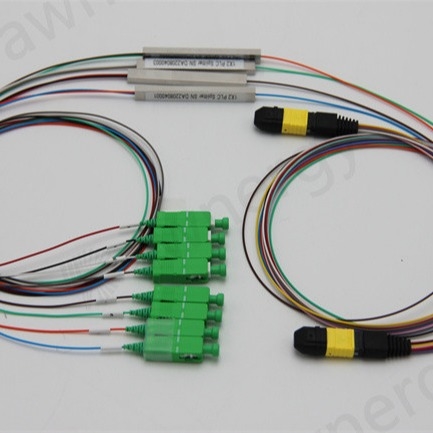

A Hybrid Fiber Type Optical PLC Splitter with MPO Connector is a type of fiber optic splitter that is used to split a single optical signal into multiple signals.The splitter uses a planar lightwave circuit (PLC) to split the optical signal into multiple output signals. The MPO (Multi-Fiber Push-On) connector is a type of fiber optic connector that can accommodate multiple fibers in a single connector, making it ideal for high-density applications.



Standard

IEC 61754-5 Fiber optic interconnecting devices and passive components – fiber optic connector interfaces – Part 5: Type MT connector family
IEC 61754-7 Fiber optic interconnecting devices and passive components – fiber optic connector interface – Part 7: Type MPO connector family
IEC 61754-4 Fiber optic interconnecting devices and passive components – fiber optic connector interfaces - Part 4: Type SC connector family
IEC 61755-3-1 Optical interface, 2,5 mm and 1,25 mm diameter cylindrical full zirconia PC ferrule, single mode fiber
IEC 61755-3-31 Connector parameters of non-dispersion shifted single mode physically contacting fibers - Angled polyphenylene supplied rectangular ferrules
TIA/EIA-604-5-D Fiber Optic Connector Intermate ability Standard, Type MPO
TIA/EIA-604-3 Fiber Optic Connector Intermate ability Standard, Type SC
TIA/EIA-568-D.3 Optical Fiber Cabling Components





MAIN FEATURES

General characteristics are listed in table 2



Table 2 - General characteristics

Item Optical Parameter
Fiber Type G657 A1
Fiber Diameter 900µm fiber (loose tube)
Fiber Coating Material PVC or similar
Fiber identification diagram See the table of attachments.
Length See the table of attachments.
Mode Type SM – Single mode
Max. Insertion Loss, dB (MTP/MPO Connector) @1550&1310nm

≤ 0.7dB Max. (Normal)

≤ 0.35dB Max. (Low Loss)

Max. Insertion Loss, dB (SC Connector) @1550&1310nm ≤ 0.30dB Max.
Min. Return Loss, dB (MTP/MPO Connector) @1550&1310nm ≥ 60dB
Min. Return Loss, dB (SC Connector) @1550&1310nm ≥ 60dB
Operating Temperature, °C -25°C ~ +75°C
Storage Temperature, °C -25°C ~ +75°C
Mating Cycles △IL ≤ 0.2dB (for 500 mates)
Storage Humidity
  1. - 100%

General characteristics 1x2 PLC SPLITTER are shown in Table 3

Item Optical Parameter
Operating Wavelength 1260~1650nm
Fiber Type G.657A1 fiber
Coupling Ratio (%) 1:2 Equal
Maximal Insertion Loss 3,7 dB – for non-connectorized splitters (NC/NC)
Maximal Uniformity 0.5 dB
Maximal Polarization Dependent Loss (PDL) 0.20 dB
Minimal Return Loss 55 dB
Minimal Directivity 55 dB
Cable Type Coated Fiber (900µm)
Package Dimension

- 900 µm Fiber: 55(L) x 7(W) x 4(H) mm





Fiber Identification

- 900 µm Fiber:

INPUT: “In”

OUTPUT: Fiber # (“1” ~ ”2”)

Fiber color

The colors sequence for fiber (250µm) should be according the Telcordia standard. For 900µm tight buffer should be white.

OUT: follow the sequence below:

Fiber 1 – Blue

Fiber 2 - Orange

Fiber 3 – Green

Fiber 4 – Brown

Fiber 5 - Grey

Fiber 6 – White

Fiber 7 – Red

Fiber 8 – Black

Table 3 - End-face geometry Parameter

End-face geometry Parameter are shown in Table 4

Item Parameter
MTP / MPO Connector according to IEC61733-1
SC connector as per supplier standard




Physical characteristics are shown in Table 5

Item Parameter
MTP / MPO Connector according to IEC61733-1
Connector Type Single mode MTP/APC or MPO/APC (male) or (female)
Connector Body Color Green
Boot Color Black
SC connector
Connector Type Single mode simplex SC/APC
Boot Color Green
Connector Body Color Green
Housing Characteristics High-impact, Flame-retardant plastic, UL 94V0 flammability rated
Table 5 – Physical characteristics



Assembly Drawing

MPO PLC Splitter, MPO Fiber Optic Splitter  gpon optical splitter 0MPO PLC Splitter, MPO Fiber Optic Splitter  gpon optical splitter 1
