DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length
  • DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length
  • DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length
  • DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length

DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length

Place of Origin China
Brand Name Dawnergy
Model Number DA-PLC
Product Details
Pigtail Length:
>1000mm
Fiber Type:
ITU-T G.657A1
Housing Material:
Stainless Steel
Highlight:

PLC Planar Light Wave Circuit Splitter

,

DA-PLC Planar Light Wave Circuit

Payment & Shipping Terms
Minimum Order Quantity
500
Packaging Details
Blister box / Carton
Delivery Time
5-7 work days
Payment Terms
L/C,D/A,D/P,T/T
Product Description

    DA-PLC Planar Light Wave Circuit (PLC) Splitter


1.    Description

Dawnergy’s Planar Lightwave Circuit (PLC) Splitters technology are built using unique silica glass waveguide process. These devices have low insertion loss with high return loss over a wide wavelength range. The input of PLC Splitter distribute optical power to the output ports and are commonly used in FTTx systems, communication networks, Analog Passive Optical Networks, CATV networks and other fiber optic systems. Mini type PLC splitter can be installed in fiber termination box, fiber distribution box, splice closure and rack mounted splitter box. The compact design can save installation space and time.

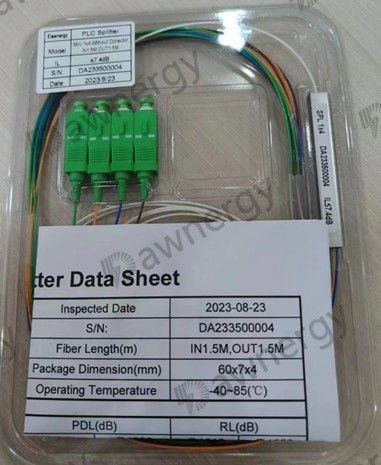

                                                                              DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length 0DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length 1DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length 2

DA-PLC Planar Light Wave Circuit PLC Splitter 1000mm Pigtail Length 3



2.    Features

l  Low Insertion loss & High Return Loss

l  Manufacturing and testing standard: Telcordia GR-1209 and GR-1221

l  Low PDL

l  Compact Design

l  Good channel-to-channel uniformity

l  Wide Operating Wavelength Range and Operating Temperature

l  High Reliability and Stability for Indoor and Outdoor Applications



3.    PLC Splitter Specifications

Type Splitter

Mini PLC Splitter 1x2

Mini PLC Splitter 1x4

Mini PLC Splitter 1x8

PLC Splitter 1x 4 SC/APC

PLC Splitter 1x8 SC/APC

PLC Splitter 1x 16 SC/APC

Product code

DA-PLC-1x2



DA-PLC-1x4

DA-PLC-1x8

DA-PLC-1x4 SC/APC

DA-PLC-1x8 SC/APC

DA-PLC-1x16 SC/APC

Capacity

1x2

1x4

1x8

1x4

1x8

1x16

Connector type

No

No

No

SC/APC

SC/APC

SC/APC

Wavelength range Operating

1260nm ÷ 1660nm

Operating Wavelength(nm)

1270nm, 1310nm,1490nm,1550nm,1577m,1625nm

Insertion Loss (dB)

At 1310 and 1550nm

Max

4.0

7.6

10.9

7.6

10.9

14.5

Uniformity (dB)

Max

0.6

1.0

1.3

1.0

1.3

1.7

PDL (dB) (Polarization dependent loss)

Max

0.2

0.2

0.3

0.2

0.3

0.3

Return Loss (dB)

Min

55

Directivity (dB)

Min

55

Fiber Type

ITU-T G.657A1

Housing Material

Stainless steel

Pigtail Length

>1000mm

Pigtail OD

250µm

900µm ± 50µm

Pigtail sheath

Colored TIA/EIA 598

LSZH

Marker

Colored TIA/EIA 598

Attach labels with sequential numbers to all input and output ports

Operating Temperature ()

-10~70


Package

Splitter packed by blister plastic box, test report of each splitter included in the box. The label in plastic box with information as customer requirement


Products have QR code stickers according to customer requirements

Label on Splitter

Print information on Splitter housing: Manufacturer name, product code, serial number, capacity and month/year of manufacture. Ink guaranteed not to fade over time.
