| Place of Origin: | china |
|---|---|
| Brand Name: | DAWNERGY |
| Certification: | Anatel |
| Model Number: | DA-PLC-264-SCA-M |
| Minimum Order Quantity: | 100pcs |
| Price: | 45 USD |
| Packaging Details: | Blister Box |
| Delivery Time: | 5 working days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 10k Per Day |
| Name: | 2x64 Mini Type SCAPC Fiber PLC Splitter | Fiber Type: | ITU-T G657A1 Or Custom Specified |
|---|---|---|---|
| Fiber Length: | 1(+/- 0.05)meter Or Custom Specified | Connector: | SCAPC |
| Operating Wavelength(nm): | 1260-1650 | Fiber Cable Color: | White Or Multi-color |
| High Light: | 2x64 Sc Apc Splitter,LOW LOSS Sc Apc Splitter,SCAPC Plc Optical Splitter |
||

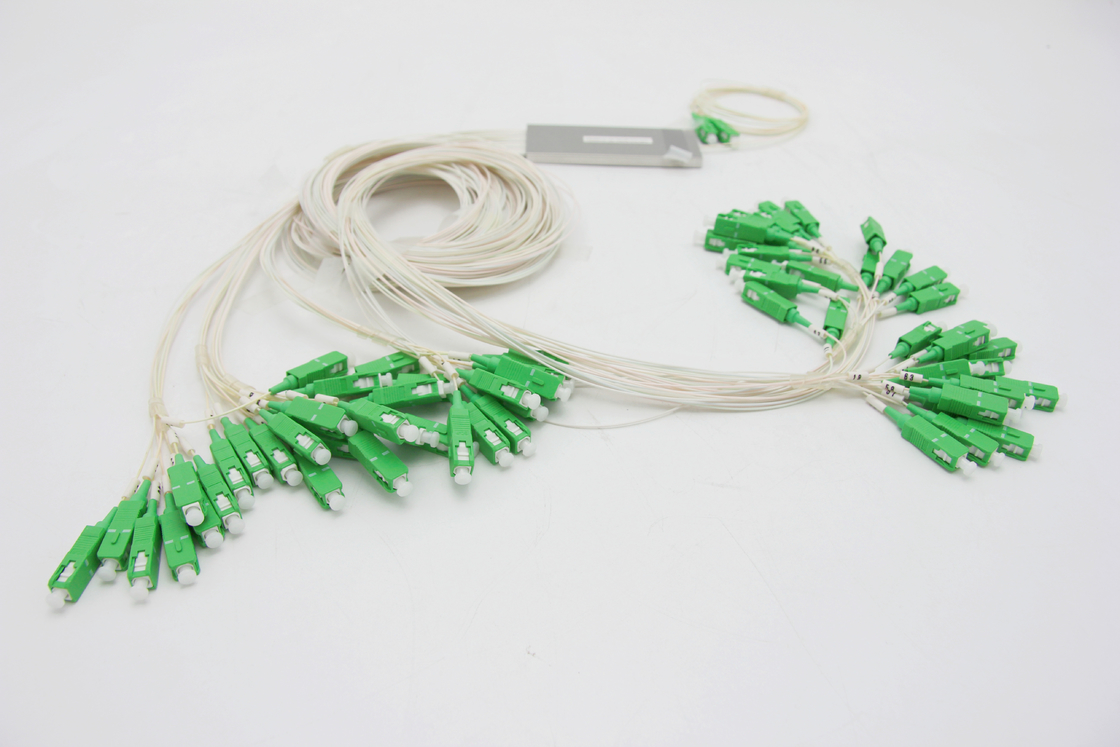

2X64 MINI MODULE FIBER OPTICAL PLC SPLITTER WITH SC/APC CONNECTOR TELCORDIA 1209&1201 STANDARD LOW LOSS HIGH RELIABILITY
Dawnergy PLC splitters are single mode splitters with an equal split ratio from one or two input fibers to multiple output fibers, which are based on PLC (planar light wave circuit) technology and provide cost effective light distribution solution with small form factor.
Dawnergy PLC splitters feature superior optical performance, wide operating wavelength range, good channel-to-channel uniformity, high-reliability and small size and are widely used in FTTH PON networks to realize optical signal power management.
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10 | 13.1 | 16.2 | 20 |
| Max(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.6/13.7 | 16.5/16.8 | 20.5/21.0 | |
| Uniformity (dB) | Typical | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 |
| Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Return Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 (+/-0.05) or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
| WDL (dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| TDL (dB) (-40~85℃) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| Packaging Size(mm) | Bare Splitter | 40x4x4 | 50x7x4 | 60x12x4 | |||
| Mini Module | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
| Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.7 | 7 | 10.8 | 13.6 | 16.8 | 20.5 |
| Max(P/S) | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.4/17.7 | 21.0/21.5 | |
| Uniformity (dB) | Typical | 0.5 | 1 | 1 | 1.2 | 1.5 | 2.2 |
| Max | 0.6 | 1.2 | 1.5 | 1.8 | 2 | 2.7 | |
| PDL (dB) | Typical | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
| Return Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 +/-0.05 or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
| WDL (dB) | Typical | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Max | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 | |
| TDL (dB) (-40~85℃) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| Packaging Size(mm) | Bare Splitter | 50x7x4 | 60x7x4 | 70x12x4 | |||
| Mini Module | 60x7x4 | 80x12x5 | 100x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
| Notes: 1. Measurements are done at room temperature. Connector loss is excluded in the above specifications. | |||||||
| 2. S=Standard grade, P=Premium grade | |||||||
