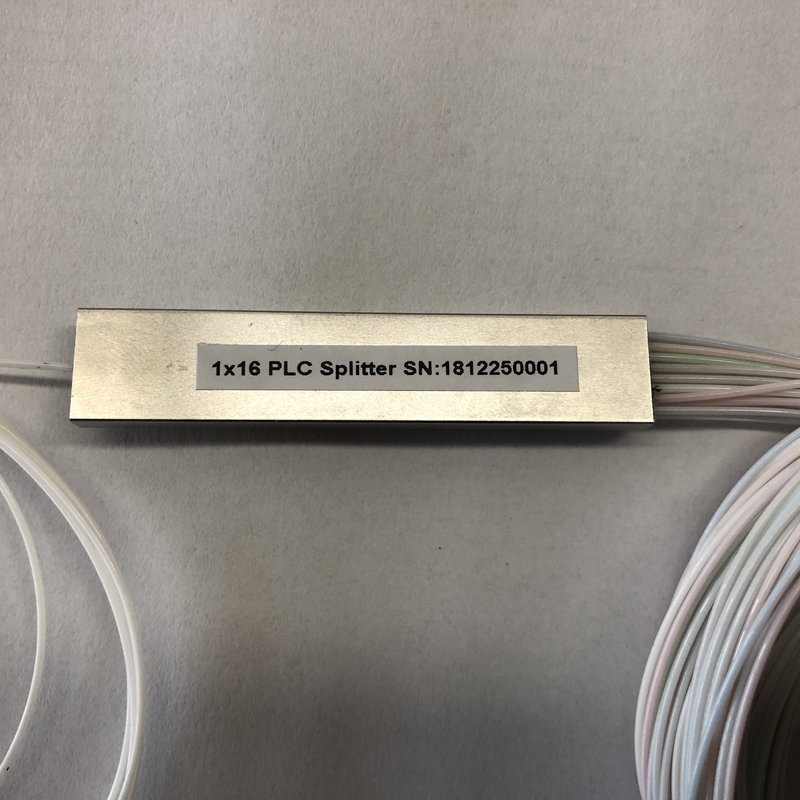

1X16 MINI MODULE FIBER OPTICAL PLC SPLITTER WITHOUT CONNECTOR TELCORDIA 1209&1201 STANDARD LOW LOSS HIGH RELIABILITY
We mainly operate passive products in the field of optical cables and optical communication wiring, including: optical cables, fiber jumpers, pigtails, splitters, fiber distribution boxes, optical cable splice boxes, optical cross boxes, ODF, communication outdoor Cabinets, data center cabinets, etc. Domestically, we have a large market share in the centralized procurement of China Telecom, China Mobile, China Unicom and China Tower. At the same time, we are also a qualified supplier for major internationally renowned equipment manufacturers and fiber optic cable manufacturers. Our products are also widely used in special networks such as radio broadcast, television, electric power and military.
| Parameters | 1x2 | 1x4 | 1x8 | 1x16 | 1x32 | 1x64 | |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.6 | 6.8 | 10 | 13.1 | 16.2 | 20 |
| Max(P/S) | 3.8/4.0 | 7.2/7.4 | 10.5/10.7 | 13.6/13.7 | 16.5/16.8 | 20.5/21.0 | |
| Uniformity (dB) | Typical | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 |
| Max | 0.4 | 0.6 | 0.8 | 1.2 | 1.5 | 2.5 | |
| PDL (dB) | Typical | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.2 |
| Max | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 | 0.4 | |
| Return Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 (+/-0.05) or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
| WDL (dB) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.5 | |
| TDL (dB) (-40~85℃) | Typical | 0.2 | 0.2 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| Packaging Size(mm) | Bare Splitter | 40x4x4 | 50x7x4 | 60x12x4 | |||
| Mini Module | 60x7x4 | 60x12x4 | 80x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
| Parameters | 2x2 | 2x4 | 2x8 | 2x16 | 2x32 | 2x64 | |
| Operating Wavelength(nm) | 1260~1650 | ||||||
| Insertion Loss (dB) | Typical | 3.7 | 7 | 10.8 | 13.6 | 16.8 | 20.5 |
| Max(P/S) | 3.9/4.2 | 7.5/7.8 | 11.2/11.5 | 14.2/14.5 | 17.4/17.7 | 21.0/21.5 | |
| Uniformity (dB) | Typical | 0.5 | 1 | 1 | 1.2 | 1.5 | 2.2 |
| Max | 0.6 | 1.2 | 1.5 | 1.8 | 2 | 2.7 | |
| PDL (dB) | Typical | 0.1 | 0.1 | 0.2 | 0.3 | 0.3 | 0.3 |
| Max | 0.2 | 0.2 | 0.4 | 0.4 | 0.4 | 0.4 | |
| Return Loss (dB) | Min | 55 | |||||
| Directivity (dB) | Min | 55 | |||||
| Fiber Length (m) | 1 +/-0.05 or customer specified | ||||||
| Fiber Type | ITU-T G657A1 or customer specified | ||||||
| WDL (dB) | Typical | 0.3 | 0.3 | 0.3 | 0.5 | 0.5 | 0.8 |
| Max | 0.4 | 0.4 | 0.5 | 0.6 | 0.8 | 1.2 | |
| TDL (dB) (-40~85℃) | Typical | 0.3 | 0.3 | 0.3 | 0.4 | 0.4 | 0.4 |
| Max | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.5 | |
| Operating Temperature (℃) | -40~85 | ||||||
| Storage Temperature (℃) | -40~85 | ||||||
| Packaging Size(mm) | Bare Splitter | 50x7x4 | 60x7x4 | 70x12x4 | |||
| Mini Module | 60x7x4 | 80x12x5 | 100x20x6 | 100x40x6 | |||
| Cassette Type | 100x80x10 | 120x80x18 | |||||
| Notes: 1. Measurements are done at room temperature. Connector loss is excluded in the above specifications. | |||||||
| 2. S=Standard grade, P=Premium grade | |||||||
