| Place of Origin | CHINA |
| Brand Name | DAWNERGY |
| Certification | ANATEL,CE,ROHS |
| Model Number | DA- GJXFH |

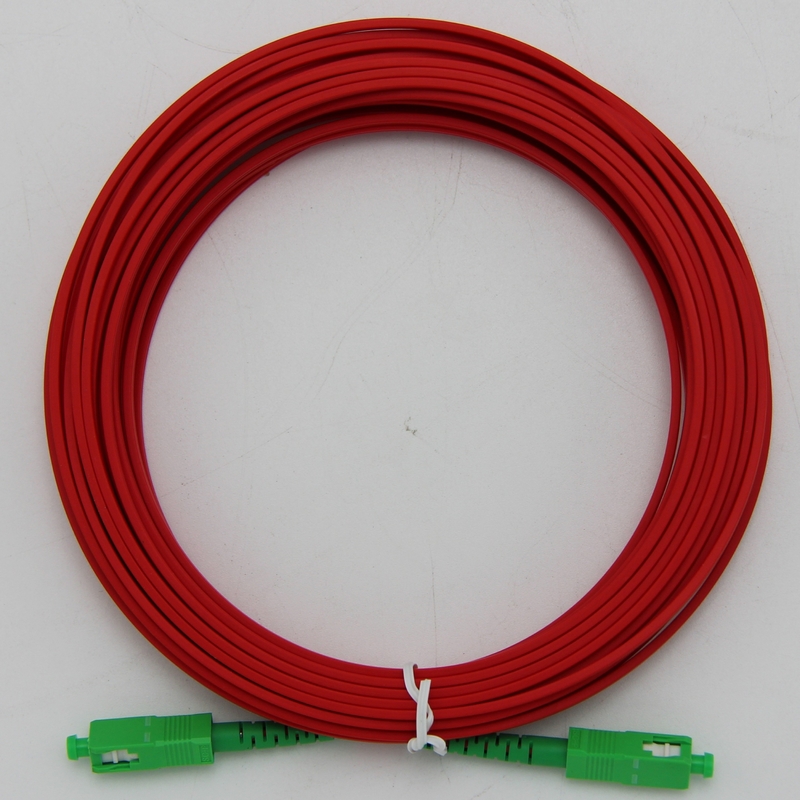

Dawnergy’s fiber optic patch cords are available in either single mode or multi-mode for various applications such as long-haul telecommunication networks, short-link systems and equipment-to-equipment data links.
GJXFH FTTH Drop Cable Drawing
Jacket color can be customized
Main Cable Specifications
| Item | Description | |
| Fiber Core | 1 or 2 | |
| Cable Diameter | (2.0±0.1) × (3.0±0.1) mm | |
| Strength Member | Material | FRP |
| Diameter | 0.50±0.05 | |
| Optical Fiber | Type | G .657A2 |
| Color | Blue or Blue, Orange | |
| Sheath of Cable | Material |
Red flame retardant and UV protected LSZH comply with IEC60332-1 Color code: 485C red |
| Temperature | Operation | -40~+70 ℃ |
| Installation | -30~+70 ℃ | |
| Storage | -40~+70 ℃ | |
| Mechanical | Tensile (short term) | 80N |
| Crush (short term) | 1000N/10cm | |
| Bending Radius | Dynamic | 20D |
| Static | 10D | |
Patchcord Specifications
| Parameters | Specifications |
| Fiber Type | G657A2 |
| Insertion Loss (dB) | ≤ 0.25 |
| Grade | Grade B |
| Return Loss (dB) | ≥ 60 |
| Connector Type | SC/APC |
| Fiber Cores | 1 or 2 |
| Material of Outer Jacket |
Red flame retardant and UV protected LSZH comply with IEC60332-1 Color code: 485C red |
| Cable Length (m) | According to customer request |
| Durability (dB) | △IL≤ 0.2, 500 times plugging |
| Operating Temperature (℃) | -20 ~ +70 |
Our main products are:
Fiber Optic Cables,
Fiber Optical Splitters,
Fiber Optic Patch Cord,
Pigtails,WDM Modules,
Fiber Distribution Boxes,
Fiber Optic Sockets,
Optical Distribution Cabinets/Hubs,
Outdoor Telecom Cabinets,
Optical Distribution Frames,
Network Rack cabinets, etc.
