Single Mode Bare Fiber Ribbon - 12 fibers

Place of Origin	CHINA
Brand Name	DAWNERGY
Certification	CE ROHS

Product Details

Fiber Type:

Single Mode Bare Fiber Ribbon

Fiber Count:

12 Fibers

Fiber Material:

Corning G657A2 + Coating Resin

Structure:

Flat‑row Ribbon Bonded By Matrix Tape

Width:

3050±50 μm

Thickness:

350±50 μm

Flatness:

≤50 μm

1310nm Attenuation:

≤0.36 dB

1550nm Attenuation:

≤0.22 dB

Core Advantage:

Supports Mass Splicing（12‑fibers Simultaneous Splice）

Payment & Shipping Terms

Payment Terms

L/C,D/A,D/P,T/T

Product Description

Single Mode Bare Fiber Ribbon - 12 fibers

Description

Fiber optic ribbon is a flat, parallel strip made of multiple optical fibers bonded together side-by-side.

Features

l Structure: Contains 12 individual glass fibers laid in a flat row and held by a matrix or tape.

l Mass Splicing: Allows workers to splice an entire group of fibers (like all 12 at once) in a single machine cycle instead of splicing them one by one

Specifications

Parameters	2x16
Material	Corning G657A2 fiber, coating resin
Number of fibers in the bundle	12
Width w (μm)	3050±50
Thickness t (μm)	350±50
Horizontal spacing between adjacent fibers d (μm)	≤300
Horizontal spacing between fibers on both sides b (μm)	2750±50
Flatness p (μm)	≤50
1310nm attenuation (dB)	≤0.36
1550nm attenuation (dB)	≤0.22

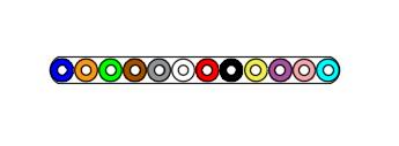

Fiber Colors

NO.	1	2	3	4	5	6	7	8	9	10	11	12
NO.	Blue	Orange	Green	Brown	Grey	White	Red	Black	Yellow	Violet	Pink	Aqua
Color
