2.0mm Fiber Optic Patch Cord

Parameters

Specifications

Fiber Type

SM (G652D)

Fiber Spec

Mode field diameter (MFD):

At 1310 nm: 9.2 μm ± 0.4 μm

At 1550 nm: 10.4 μm ± 0.8 μm

Cladding diameter: 125 μm ± 0.7 μm

Core concentricity error: ≤ 0,6 μm

Insertion Loss (dB)

≤ 0.3 (max)

Return Loss (dB)

≥ 50 (UPC)

Operating Wavelength Range

Single-mode: 1310 nm to 1550 nm

Connector Type (with dust cap)

FC/UPC-FC/UPC

FC/UPC-SC/UPC

SC/UPC-SC/UPC

SC/UPC-LC/UPC

FC/UPC-LC/UPC

Connector Color

TIA-568-C.3 standard

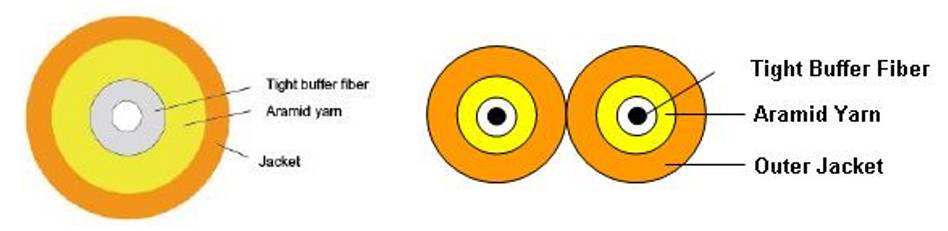

Fiber Cores

Simplex or Duplex

Outer Dimension

2mm ± 2%

Strengthen Member

Kevlar

Material of Outer Jacket

Yellow LSZH

Bending radius

≥ 3 cm

Cable Length

3, 5,10,15,20m ± 2%

Durability (dB)

△IL≤ 0.1, 200 times plugging

Tension

≥ 90 N

Crush resistance

≥ 500 N

Operating Temperature Range (℃)

-10 ~ +60

Guaranteed

≥ 15 years
