CABLE AISG2.0 RET CONTROL
  • CABLE AISG2.0 RET CONTROL
  • CABLE AISG2.0 RET CONTROL

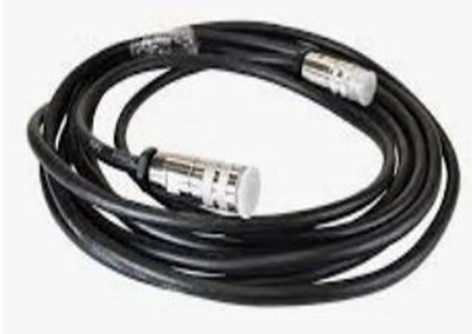

CABLE AISG2.0 RET CONTROL

CABLE AISG2.0 RET CONTROL

Place of Origin China
Brand Name Dawnergy
Product Details
Use For:
Electric Tilt Adjustment Of RET-enabled Antenna
Protocol:
AISG 2.0/AISG1.1
Connector A- Connect To RCU:
8pin Female
Highlight:

AISG 2.0 RET control cable

,

antenna tilt adjustment cable

,

RET cable for antenna control

Payment & Shipping Terms
Minimum Order Quantity
1000
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description

CABLE AISG2.0 RET CONTROL

1.      Cable Structure

CABLE AISG2.0 RET CONTROL 0


CABLE AISG2.0 RET CONTROL 1

CABLE AISG2.0 RET CONTROL 2CABLE AISG2.0 RET CONTROL 3

A.     Cable AlSG2.0 for RET control type1-AISGF-DB9 Connector

CABLE AISG2.0 RET CONTROL 4CABLE AISG2.0 RET CONTROL 5

B.     Cable AlSG2.0 for RET control type2-AISGF-DB15 Connector

CABLE AISG2.0 RET CONTROL 6

CABLE AISG2.0 RET CONTROL 7CABLE AISG2.0 RET CONTROL 8

C.     Cable AlSG2.0 for RET control type3-AISGF-AISGM Connector



2.      Contract Description

A.     Cable AlSG2.0 for RET control type1-AISGF-DB9 Connector

pin

9PIN DB9 Male

8PIN AISG Female Straight

IEC 601309

1

red

red

2

/

/

3

blue

blue

4

black

/

5

green

green

6

/

red

7

/

black

8

/

/

9

black

/

B.     Cable AlSG2.0 for RET control type3-AISGF-AISGM Connector

pin

8PIN AISG Male Straight

IEC 601309

8PIN AISG Female Straight

IEC 601309

1

brown

brown

2

/

/

3

blue

blue

4

/

/

5

green

green

6

red

red

7

black

black

8

/

/

C.     Cable AlSG2.0 for RET control type2-AISGF-DB15 Connector

Pin

15PIN DB15 Male

Pin

8PIN AISG Female Straight

IEC 601309

13

blue

3

blue

9

green

5

green

15

red

6

red

14

black

7

black


3.      Specifications

Parameters

Specification

Use for

Electric tilt adjustment of RET-enabled antenna

Protocol

AISG 2.0/AISG1.1

Connector A- Connect to RCU

8pin Female

AISG Connector A body Style

Straight

AISG Connector A Standard

IEC 601309

AISG Connector B- Connect to RRU

8 pin Male/9pin Male/ 15pin Male

Wire

Construction

Twisted pair

Conductor Cross-section area (mm2)

≥0.185

Wire Insulation diameter (mm)

≥0.93

Jacket Diameter (mm)

≥ 6.7

Length

10m±1%


4.      Electrical Characteristics

Parameters

Specification

Max Voltage

≥ 58V

Withstanding Voltage

≥500V



Characteristic impedance

(100±20) Ω



Contact Resistance

<5mΩ

Insulator Resistance

≥5MΩ·

Rated current

≥4A


5.      Environmental Characteristic

Parameters

Specification

Temperature range

-40℃ +85℃

Neutral salt mist

>48H

Environmental Standard

RoHS

IP-Protection Class

IP67 IEC60529


6.      Ordering information

Descriptions

Model

Cable AlSG20 for RET control type1----AISGF-X

X=DB9 Connector/DB15 Connector/AISGM Connector

(Cable AISG2.0 length 10M Electric tilt adjustment of RET-enabled antenna)

DA-AISG20-10-AISG-DB-X

(X=DB9/DB15/ AISGM)



-        Each AISG is labeled with the manufacturer's mark and includes key product details such as: manufacturer name, model, part number, date of manufacture, and total length marking.
