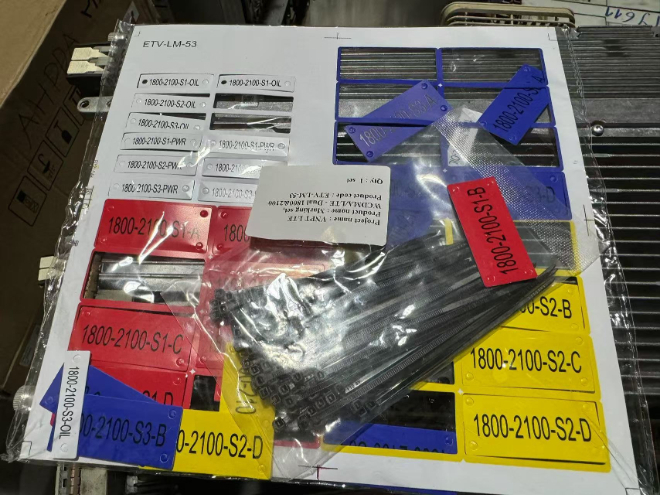

Label package, cable tie for one 10-meter AISG/jumper cable

Parameters

Specification

Cable type

Jumper or cable AISG

jumper, AISG quantity

1

For position number

2

Material

Reflective paper for labels

Water-resistant lamination

Glossy lamination

Finishing type of the label

Half-cut

Packaging configuration

Packaging in zip bags

Quantity and content of labels in one label pack

One label set contains multiple label units. Each unit is printed with one of the following details:

·       Sector serial number: sufficient labels for 6 sectors.

·       Technology name: 2G, 3G, or 4G.

·       Frequency band: 900 MHz, 1800 MHz, or 2100 MHz.

·       Fiber symbol for the same sector, technology, and frequency band (with the same MIMO): A, B, C, or D.

Dimension (Width x Depth) per label unit (mm)

≥ 15 x 55

Parameters

Specification

Cable type

Jumper or cable AISG

Number of cables served by one pack of cable ties

1

Quantity of cable ties in one bundle per cable (fiber)

≥10 pcs/ 1 cable

Inside surface of the cable tie

Serrated teeth

Lenth (mm)

≥390

Width (mm)

≥7.6

Minimum Tensile Strength (N)

≥ 500

Material

Polyamide 66

Plastic Property

No Halogen/Halogen free

Flammability (UL94)

V2

Operating Condition Temperature (℃)

-40 ÷ 85

Safety standard

RoHS, HF
