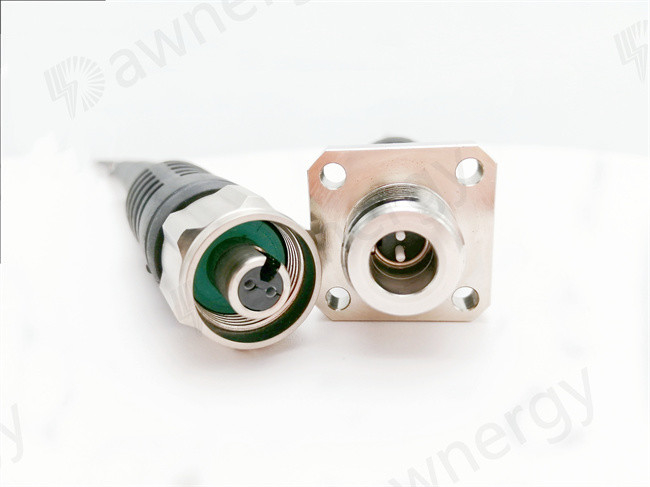

FTTA & FTTH Water-proof Patchcord

The FTTA & FTTH water-proof connector is factory-terminated, environmentally sealed and hardened connectors to reduce the cost and the time of drop cable deployment in optical access networks. The patchcord is specifically designed to significantly reduce required drop cable installation and compatible to active device. The patchcord provide a robust and sealed connection solution for FTTA and FTTH connectivity.

Application

  • Multi-purpose Outdoor
  • For connection between distribution box and RRH
  • Deployment in Remote Radio Head cell tower applications

Features

  • Cost effective solution for in house termination
  • IP67 water and dust protection
  • Wide range of operational temperature for outside plant -40 to +85°C
  • Different cable diameter can be available
  • No need special tools for assembly

Patchcord Specifications

Parameters Specifications
Connector Type FTTA & FTTH water-proof connector
Fiber Type SM or MM
Fiber Core 1,2,4~24
Insertion Loss (dB) Depend on water-proof connector type
Material of Outer Jacket LSZH, PE, PVC, PA, TPU or customized
Cable Length (m) Customized
Operating Temperature () -40 ~ +70



Patch cord Length Tolerance
Overall Length (L) (m) Length of tolerance (cm)
0<L<=20 +10/-0
20<L<=40 +15/-0
L>40 +0.5%L/-0





7.0mm Armour Outdoor Cable Specifications

ODC Waterproof FTTA Patch Cord 0



Cable Count Out sheath Diameter (mm) Weight (kg) Minimum Tensile Strength (N) Minimum Crush Load (N/100mm) Minimum Bending Radius (mm) Storage Temperature (℃)
1~4 7.0±0.3 68 Short Term Long Term Short Term Long Term Short Term Long Term -20~+70
600 1000 2000 3000 20D 10D


7.0mm Outdoor Cable Specifications

ODC Waterproof FTTA Patch Cord 1



Cable Count Out sheath Diameter (mm) Weight (kg) Minimum Tensile Strength (N) Minimum Crush Load (N/100mm) Minimum Bending Radius (mm) Storage Temperature (℃)
1~4 7.0±0.3 50 Short Term Long Term Short Term Long Term Short Term Long Term -20~+70
1000 600 2000 1000 20D 10D

Optical Characteristics



Item Parameter Reference
Single mode Multimode
Insertion Loss Maximum≤0.3dB Maximum≤0.3dB IEC 61300-3-34
Return Loss

≥60dB (APC)

≥50dB (UPC)

≥30dB (UPC) IEC 61300-3-6



End-Face Geometry

Item UPC APC
Radius of curvature (mm) 7~25 5~12
Fiber height (nm) -100~100 -100~100
Apex offset (um) 0~50 0~50
APC angle (°)   8±0.2
Key error (°)   0.2 max



Test Conditions Reference

  • Endurance 500 mattings IEC 61300-2-2
  • Vibration Frequency: 10 to 55Hz, Amplitude: 0.75mm IEC 61300-2-1
  • Cable retention 400N (main cable); 50N (connector part) IEC 61300-2-4
  • Strength of coupling mechanism 80N for 2 to 3mm cable IEC 61300-2-6
  • Cable torsion 15N for 2 to 3mm cable IEC 61300-2-5
  • Fall 10 drops, 1m drop height IEC 61300-2-12
  • Static lateral load 1N for 1h (main cable); 0.2N for 5min (ranch part) IEC 61300-2-42
  • Cold -25°C, 96h duration IEC 61300-2-17 Dry heat +70°C, 96h duration IEC 61300-2-18
  • Change of temperature -25°C to +70°C, 12 cycles IEC 61300-2-22
  • Humidity +40°C at 93%, 96h duration IEC 61300-2-1
