Name: 1200mm Outdoor Telecom Cabinet
Brand: DAWNERGY
SKU: TYG06-HE01-S1
Price: 828 USD
Availability: InStock
Rating: 5 (163 reviews)
ISBN: 13252676

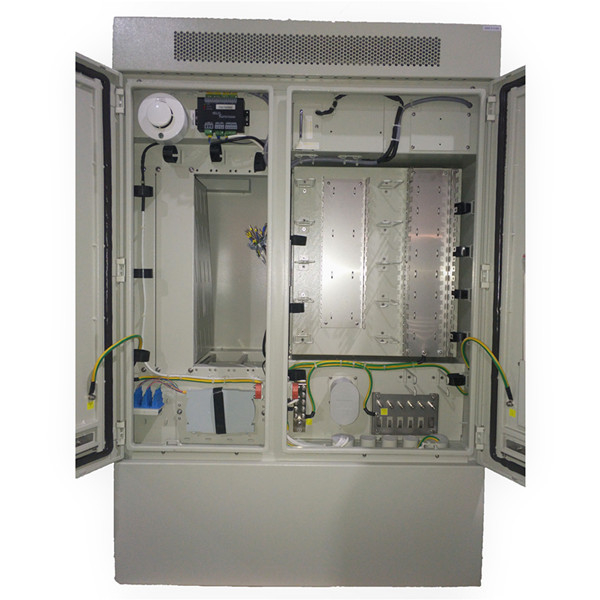

1200mm Outdoor Telecom Cabinet

Basic Information

Place of Origin:	CHINA
Brand Name:	DAWNERGY
Certification:	CE
Model Number:	TYG06-HE01-S1

Minimum Order Quantity:	10
Price:	828
Packaging Details:	Wooden Box
Payment Terms:	T/T
Supply Ability:	100 PER DAY

Contact Now

Product:	Outdoor Telecom Cabinet	Application:	Wireless Mobile Stations
Cooling Method:	Air Condition/Fan/Heat Changer	Protection:	IP55
Battery:	Can Be Installed Inside	Device:	19 Inch Devices Can Be Installed Inside
High Light:	6U Outdoor Telecom Cabinet , 1200mm Outdoor Telecom Cabinet , 800mm telecommunication cabinet

Features

Three-warehouse body,device warehouse/Battery warehouse/Mdf warehouse;
19 inch device installation;
Cable splicing and protection function;
Welded forming with galvanized steel sheet, outdoor powder spouted at the inside and outside surface.

Specification

Cable

Type: bundle cable
Inlet number:7
Inlet direction: bottom of the body

Equipment installationspace: 6U
Distribution capacity

Internal capatity:128 lines (16×8-line System module)
Subscriber capacity:200 lines (20×10-line Subscriber module)

Battery capacity: 4×12V 38AH batteries
Dimension: (height )1200mm×(width) 800mm×(depth)350mm

Environmental specification

Operating temp. range: -45℃～+50℃
Storage temp. range: -45℃～+55℃
Relative humidity: 5%～90%(no condensation)
Atmospheric pressure: 62 kpa～101 kpa (approximation 0m～5000m)
Solar radiation intensity: radiation intensity 1120×(1±10%)W/m2
Grounding resistance: ≤10Ω
Heat-exchange: 50W/K
