1332mm external telecoms cabinet
  • 1332mm external telecoms cabinet

1332mm external telecoms cabinet

Place of Origin CHINA
Brand Name DAWNERGY
Certification CE
Model Number TYG06-HE02-M1
Product Details
Product:
Outdoor Telecom Cabinet
Application:
Wireless Mobile Stations
Cooling Method:
Air Condition/Fan/Heat Changer
Protection:
IP55
Battery:
Can Be Installed Inside
Device:
19 Inch Devices Can Be Installed Inside
High Light:

10U External Telecoms Cabinet

,

1332mm External Telecoms Cabinet

,

DAWNERGY Outdoor Telecom Cabinet

Payment & Shipping Terms
Minimum Order Quantity
10
Price
828
Packaging Details
Wooden Box
Payment Terms
T/T
Supply Ability
100 PER DAY
Product Description

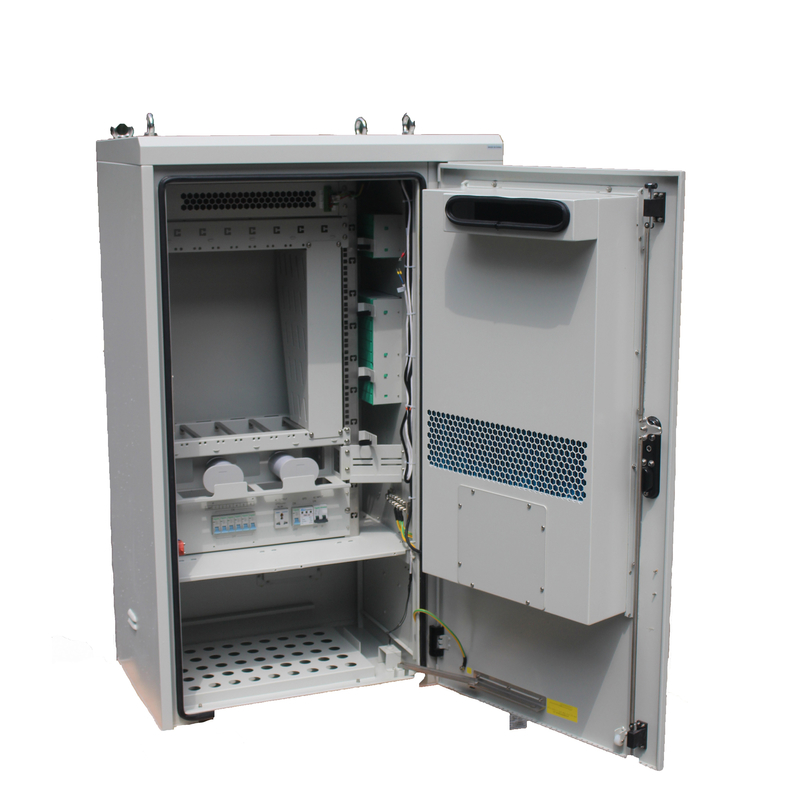

Outdoor Telecom Cabinet for Wireless Mobile Station TYG06-HE02-M1

Features

  • Two-warehouse body, Device warehouse/ODF warehouse;
  • A independent Battery warehouse in Device warehouse;
  • 19 inch device installation;
  • Cable splicing and protection function;
  • Heat exchanger cooling system on the door of Device warehouse.

Specification

  • Cable
  • Type: bundle cable
  • Inlet number:10
  • Inlet direction: bottom of the body
  • Equipment installation space: 10U
  • Distribution capacity: Uplink maximum 48 cores, Downstream maximum 120 cores
  • Environmental specification
  • Operating temp. range: -45℃~+50℃
  • Storage temp. range: -45℃~+55℃
  • Relative humidity: 5%~90%(no condensation)
  • Atmospheric pressure: 62 kpa~101 kpa (approximation 0m~5000m)
  • Solar radiation intensity: radiation intensity 1120×(1±10%)W/m2
  • Grounding resistance: ≤10Ω
  • Heat-exchange: 80W/K
