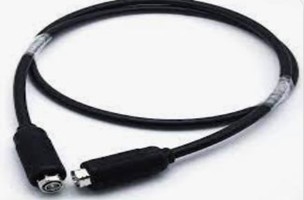

HCAHY(Z)-50-9 Jumper Cable IP68 RoHS Super Flexible

Place of Origin	China
Brand Name	Dawnergy

Product Details

Cable Type:

HCAHY(Z)-50-9(1/2"Super Flexible)

IP Protection Class:

IP68

RoHS:

RoHS 2011/65/EU

Highlight:

IP68 jumper cable

RoHS compliant patch cord

super flexible pigtail

Payment & Shipping Terms

Minimum Order Quantity

1000

Delivery Time

5-8 work days

Payment Terms

L/C,D/A,D/P,T/T,Western Union,MoneyGram

Product Description

DAWNERGY JUMPER CABLE

Product Attributes

Attribute	Value
Cable Type	HCAHY(Z)-50-9(1/2"Super Flexible)
IP Protection Class	IP68
RoHS	RoHS 2011/65/EU

Product Description

Structure

Jumper cable, 7/16 Male-7/16 Male straight connector with waterproof rubber boots
Jumper cable, 4.3-10 Male straight, 7-16 Male angle (L-type) connector with waterproof rubber boots
Jumper cable, 4.3/10 Male -7/16 Male straight connector with waterproof rubber boots
Jumper cable, 4.3/10 Male-4.3/10 Male straight connector with waterproof rubber boots

Cable Specifications

Parameters	Specification
Cable Type	HCAHY(Z)-50-9(1/2"Super Flexible)
Cable Inner Conductor Material	Copper-Clad Aluminum Wire
Dielectric	Physical Foam PE
Outer Conductor Material	Corrugated Copper Tube
Jacket	Black PE / Low Smoke Halogen-free Fire-retardant IEC 60754-1:2011
Jacket Diameter	≥13.1mm
Weight	166 g/m (all types)
IP Protection Class	IP68 IEC 60529:2001
Minimum bending radius	1 round ≤ 25 Many round ≤ 35

Electrical Characteristics

Parameters	Specification
Characteristics Impedance	50±2 Ohm
Operating Frequency	≥ 8.8 (GHz)
Max Voltage	≥ 16 (kW)
Voltage between inner and outer conductor (V)	≥ 2500
Insertion loss of 6M jumper @900/1800/2600MHz	≤0.75/1.05/1.40
Insertion loss of 10M jumper @900/1800/2600MHz	≤1.18/1.67/2.27
VSWR	@DC-2200 MHz ≤1.10 @2200-2700 MHz ≤1.15 @2700-3800 MHz ≤1.18
Dynamic PIM (IM3) IEC 62037 (dBc) @700/900/1800/2600MHz	With Jumper Connector standard 7/16 DIN ≤-159dBc With Jumper Connector standard 4.3-10 ≤-162dBc
Insulator Resistance	≥5000MΩ

Mechanical Characteristics

Parameters	Specification
Minimum bending radius	1 round ≤ 25 Many round ≤ 35
IP Protection Class	IP68 IEC 60529:2001

Environmental Characteristics

Parameters	Specification
Temperature range	-40℃ +85℃
Neutral salt mist	IEC 60068-2-11(48H)
Vibration	IEC 60068-2-6
Damp heat,steady state	IEC 60068-2-3
RoHS	RoHS 2011/65/EU
UV Resistance	IEC-60068-2-5

Ordering Information

Description	Product code	Weight (g)
Jumper cable, 7/16 Male-7/16 Male straight connector with waterproof rubber boots length 6M	DA-JPC-7.16M STC -7/16M STC-6M	1080 ±20
Jumper cable, 7/16 Male-7/16 Male straight connector with waterproof rubber boots length 10M	DA-JPC-7.16M STC -7/16M STC-10M	1750±20
Jumper cable, 4.3-10 Male straight, 7-16 Male angle (L-type) connector with waterproof rubber boots Length 6M	DA-JPC-4.3-10M STC-7/16M AGC-6M	1095±20
Jumper cable, 4.3-10 Male straight, 7-16 Male angle (L-type) connector with waterproof rubber boots length 10M	DA-JPC-4.3-10M STC-7/16M AGC-10M	1760±20
Jumper cable, 4.3/10 Male -7/16 Male straight connector with waterproof rubber boots length 6M	DA-JPC-4.3-10M STC-7/16M STC-6M	1070±20
Jumper cable, 4.3/10 Male -7/16 Male straight connector with waterproof rubber boots length 10M	DA-JPC-4.3-10M STC-7/16M STC-10M	1740±20
Jumper cable, 4.3/10 Male-4.3/10 Male straight connector with waterproof rubber boots length 6M	DA-JPC-4.3-10M STC-4.3-10M STC -6M	1060±20
Jumper cable, 4.3/10 Male-4.3/10 Male straight connector with waterproof rubber boots length 10M	DA-JPC-4.3-10M STC-4.3-10M STC -10M	1730±20

Each jumper is labeled with the manufacturer's mark and includes key product details such as: manufacturer name, model, part number, date of manufacture, and total length marking.
