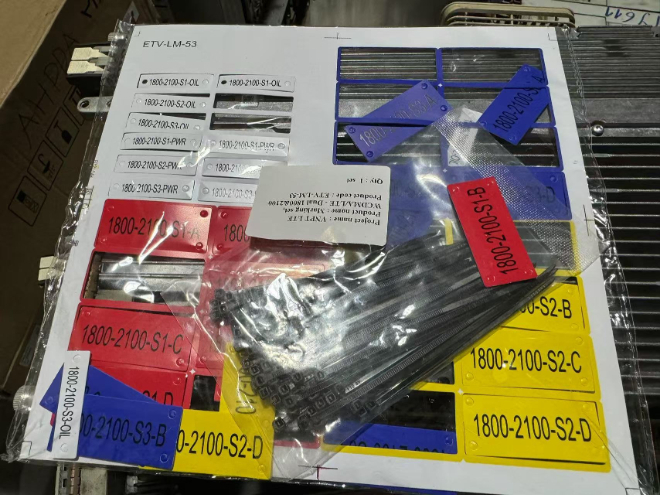

AISG Jumper Cable Label Pack with 10 Cable Ties
  • AISG Jumper Cable Label Pack with 10 Cable Ties
AISG Jumper Cable Label Pack with 10 Cable Ties

AISG Jumper Cable Label Pack with 10 Cable Ties

Place of Origin China
Brand Name Dawnergy
Product Details
Cable Type:
Jumper Or Cable AISG
Jumper, AISG Quantity:
1
For Position Number:
2
Highlight:

AISG jumper cable label pack

,

AISG cable ties with labels

,

patch cord label pack

Payment & Shipping Terms
Minimum Order Quantity
1000
Delivery Time
5-8 work days
Payment Terms
L/C,D/A,D/P,T/T,Western Union,MoneyGram
Product Description
Label Package, Cable Tie for One 10-Meter AISG/Jumper Cable
Product Attributes
Attribute Value
Cable type Jumper or cable AISG
Jumper, AISG quantity 1
For position number 2
Label Specifications
Parameters Specification
Cable type Jumper or cable AISG
Jumper, AISG quantity 1
For position number 2
Material Reflective paper for labels
Water-resistant lamination Glossy lamination
Finishing type of the label Half-cut
Packaging configuration Packaging in zip bags
Quantity and content of labels in one label pack One label set contains multiple label units. Each unit is printed with one of the following details:
  • Sector serial number: sufficient labels for 6 sectors
  • Technology name: 2G, 3G, or 4G
  • Frequency band: 900 MHz, 1800 MHz, or 2100 MHz
  • Fiber symbol for the same sector, technology, and frequency band (with the same MIMO): A, B, C, or D
Dimension (Width x Depth) per label unit (mm) ≥ 15 x 55
Cable Tie Specifications
Parameters Specification
Cable type Jumper or cable AISG
Number of cables served by one pack of cable ties 1
Quantity of cable ties in one bundle per cable (fiber) ≥10 pcs/ 1 cable
Inside surface of the cable tie Serrated teeth
Length (mm) ≥390
Width (mm) ≥7.6
Minimum Tensile Strength (N) ≥ 500
Material Polyamide 66
Plastic Property No Halogen/Halogen free
Flammability (UL94) V2
Operating Condition Temperature (℃) -40 ÷ 85
Safety standard RoHS, HF
