Outdoor Fiber Optic Cable Slotted Ribbon Cable GYDGA53

Place of Origin CHINA
Brand Name Dawnergy
Model Number GYDGA53
Product Details
Product:
Slotted Ribbon Cable GYDGA53
Core Material:
Doped Silica
Cladding Material:
Silica
Cladding Diameter:
125±1μm
Core Concentricity Error:
≤0.6μm
Cladding Non-circularity:
≤1.0%
High Light:

Doped Silica Core Slotted Ribbon Cable

,

Fiber OpticSlotted Ribbon Cable

,

Outdoor Optical Fiber Ribbon Cables

Payment & Shipping Terms
Payment Terms
L/C, D/A, D/P, T/T
Product Description

1. General

1.1 This specification covers the requirements for the supply of single stranding slotted core type optical fiber ribbon cables.

1.2 The single mode optical fiber cable comply with the requirements of this specification and generally meet any latest relevant ITU-T Recommendation G.652D.



2. Fiber characteristics

2.1 G.652D

2.1.1 Geometric characteristics

Item Construction
Core material Doped silica
Cladding material Silica
Mode field diameter At 1310nm 9.2±0.4μm
Cladding diameter 125±1μm
Core concentricity error ≤0.6μm
Cladding non-circularity ≤1.0%
Cut-off wavelength (λcc) (for cable) ≤1260nm
Cut-off wavelength (λc) (for fiber) 1100nm~1280nm
Primary coating material UV curable acrylate
Primary coating diameter of first layer 200±15μm
Primary coating diameter 250±15μm
Coating-cladding concentricity error ≤12.0μm
Fiber curl radius ≥4m
Proof stress level ≥0.5%
Breaking Load ≥4.5 kgf
Size of ribbon coating 1.1mm*0.3mm(4-ribbon)
2.1mm*0.3mm(8-ribbon)
Refractive index At 1310nm 1.466
At 1550nm 1.467



2.1.2 Transmission characteristics

Item Performance
Attenuation At 1310nm (Cabled) ≤0.40dB/km
At 1310nm (Uncabled) ≤0.34dB/km
At 1550nm (Cabled) ≤0.25dB/km
At 1550nm (Uncabled) ≤0.20dB/km
At 1383nm (Cabled) ≤0.36dB/km
At 1383nm (Uncabled) ≤0.34dB/km
Macro bending loss Φ=30mm, 100turns at 1550nm ≤0.1dB
PMD Maximum Individual Fiber ≤0.2 ps/√km
Link design value ≤0.08 ps/√km
Chromatic dispersion Within 1288~1339nm ≤3.5ps/nm·km
Within 1339~1360nm ≤5.3ps/nm·km
Within 1271~1288nm ≤5.3ps/nm·km
At 1550nm ≤18ps/nm·km
Zero dispersion wavelength 1300~1324nm
Zero dispersion slope ≤0.092ps/nm2·km

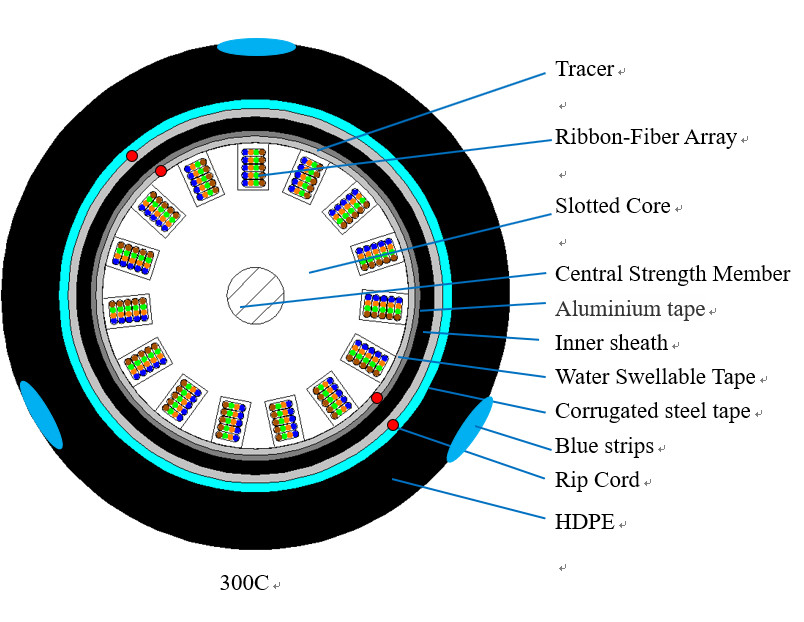

Outdoor Fiber Optic Cable Slotted Ribbon Cable  GYDGA53 0



Outdoor Fiber Optic Cable Slotted Ribbon Cable  GYDGA53 1

3.2 Dimension of the cable

Amount of fiber Fibers per ribbon Ribbons per slot Slot No.

Armouring

thickness

Stripes



***Nom. thickness of sheath Diameter (Appr.) Weight (Appr.)
mm mm mm mm Kg/km
300 4 5 15 0.21 3*0.5 2.3 26.9 523
600 8 10 8 0.21 3*0.5 2.3 28.4 548


***: The minimum thickness of the sheath shall be 2.0mm.









3.3 Coding

Ribbon identification



Fiber Count Slot No. Ribbon No. Fiber No.
No.1 No.2 No.3 No.4
300 1-15 1 Blue White White Pink
2 Yellow White White Pink
3 Green White White Pink
4 Red White White Pink
5 Purple White White Pink





Fiber Count Slot No. Ribbon No. Fiber No.
No.1 No.2 No.3 No.4 No.5 No.6 No.7 No.8
600 1-8 1 Blue White Pink White White Blue White Pink
2 Yellow White Pink White White Yellow White Pink
3 Green White Pink White White Green White Pink
4 Red White Pink White White Red White Pink
5 Purple White Pink White White Purple White Pink
6 Brown White Pink White White Brown White Pink
7 Black White Pink White White Black White Pink
8 Aqua White Pink White White Aqua White Pink
9 Orange White Pink White White Orange White Pink
10 Grey White Pink White White Grey White Pink



3.4 Performance

NO ITEM TEST METHOD SPECIFICATION
1

Tensile performance

IEC60794-1-21-E1

-Short-term load:2060N



- Time: 5 minute

Loss change £ 0.05 dB@1550 nm

(after test)

- No sheath damage

2

Crush test

IEC60794-1-21-E3

- Load: 4000 N /100mm

- Time: 5 minute

- Length: 100 mm

Loss change £ 0.05 dB@1550 nm

(during test)

- No sheath damage

3

Impact test

IEC60794-1-21-E4

- Impact hight:1m

- Impact weight:500g

- Points of impact: 3

- Times of per point: 2

Loss change £ 0.05 dB@1550 nm

(during test)

- No sheath damage

4

Repeated bending

IEC60794-1-21-E6

- Bending radius.: 20 × D

- Load: 150N

- Flexing rate: 2sec/cycle

- No. of cycle: 25

- No fiber break

- No sheath damage

5

Compound flow

IEC60794-1-21-E14

- Temperature: 70±2 oC - No compound flow in 24 hours
6

Bend test

IEC60794-1-21-E11

- Mandrel diameter: 20 × D

- No. of cycle: 3

- Loss change £ 0.05 dB@1550 nm

- No fiber degradation

- No jacket damage

7

Water penetration

IEC60794-1-22-F5

- Height of water: 1m

- Sample length: 3 m

- Time: 24 hr

- No drip through the cable core assembly
8

Twist

IEC60794-1-21-E7

- Length: 1 m

- Load: 150N

- Twist rate: ≤60sec/cycle

- Twist angle: ±90°

- No. of cycle: 5

Loss change £ 0.05 dB@1550 nm

(during test)

- No sheath damage

9

Temperature

Cycling

IEC60794-1-22-F1

- Temperature step:

+20oC→-40oC→+70oC→+20oC

- Number of cycle: 2 turns

- Time per each step: 12 hrs

- Loss change £ 0.15dB/km@1550 nm

(during test)

- Loss change £ 0.05dB/km@1550 nm

(after test)

- No sheath damage



D*: Cable diameter



3.5 Minimum bend radius

  Installation Operation
GYDGA53 20D 10D
