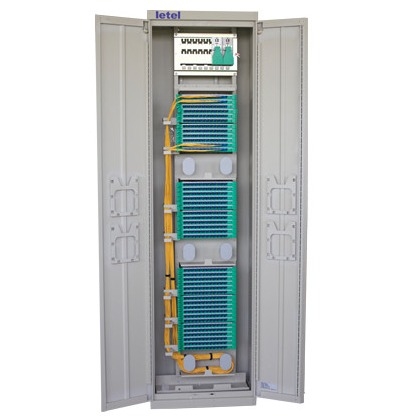

Optical Distribution Frame GPX41-J ODF 600mm Width
  • Optical Distribution Frame GPX41-J ODF 600mm Width
  • Optical Distribution Frame GPX41-J ODF 600mm Width
  • Optical Distribution Frame GPX41-J ODF 600mm Width

Optical Distribution Frame GPX41-J ODF 600mm Width

Place of Origin CHINA
Brand Name DAWNERGY
Certification CE
Model Number GPX41-J
Product Details
Brand:
Dawnergy
Product:
Optical Distribution Frame
Application:
Termination And Distribution Of The Backbone Optical Cable
Fiber:
SC FC LC ST
Installation:
Ground
Indoor/Outdoor:
Indoor
Cores:
Up To 720
Operating Temperature:
+5℃ ~ +40℃
High Light:

Indoor Optical Distribution Frame

,

600mm Width Optical Distribution Frame

,

LC Fiber Optic Frame

Payment & Shipping Terms
Minimum Order Quantity
10
Price
458
Packaging Details
Wooden Box
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
100 PER DAY
Product Description

Optical Distribution Frame GPX41-J



Dawnergy’s  optical distribution frame (ODF) is a device used in telecommunications and data communication networks to provide cross-connections between incoming and outgoing fiber optic cables. It acts as a central point for managing and organizing fiber optic cables, allowing for easy access and maintenance.



Features & Advantages:

  • Integral assembling of frame after welding, distinguishing itself in appearance as well as in practicality.
  • Cable route area and fiber storage area separated, fiber channel fabric zoning mechanism to prevent fiber from crossing.
  • One-off hanging fiber routing in fiber storage area, facilitating maintenance.
  • Rollable structure with panel integrating tray and adaptors (Patent No: 2008 2 0213561.X), adaptor cover more convenient for maintenance, industry-wide applied and disseminated.
  • Invented rotary fiber coiling disc (Patent No: ZL2011 2 0262805.5), facilitating fiber storage and maintenance.
  • Suitable for various applications, thanks to innovative and multi-functional optical cable stripping plate (Patent No: ZL2013 2 0488175.2).
  • Invented special structure for left and right columns installing rails, preventing trays from falling off.



Order Guide:





Product Model Dimension(height ×width×depth, mm) Maximum capacity Comments
Optical Distribution Frame GPX41-F-26 2600×840×300 720 Up to 10 72-core units
GPX41-F-22 2200×840×300 576 Up to 8 72-core units
GPX41-F-20 2000×840×300 504 Up to 7 72-core units
GPX41-I-26 2600×840×300 864
GPX41-I-22 2200×840×300 720
GPX41-I-20 2000×840×300 576
GPX41-J-26 2600×600×300 720
GPX41-J-22 2200×600×300 576
GPX41-J-20 2000×600×300 504



Environmental Requirements:

Operating temperature: +5℃ ~ +40℃

Relative humidity: ≤85% (+30℃)

Atmospheric pressure: 70kPa ~ 106kPa



Lightning protection technical indicators:

The high voltage protection device of the cabinet is insulated from the frame, and the insulation resistance is not less than 1000MΩ/500V (direct current); IR 1000 m Ω / 500 v or higher

The resistance voltage between the high voltage protection device of the cabinet and the rack is not less than 3000V (direct current) /min, no breakdown, no arc;
