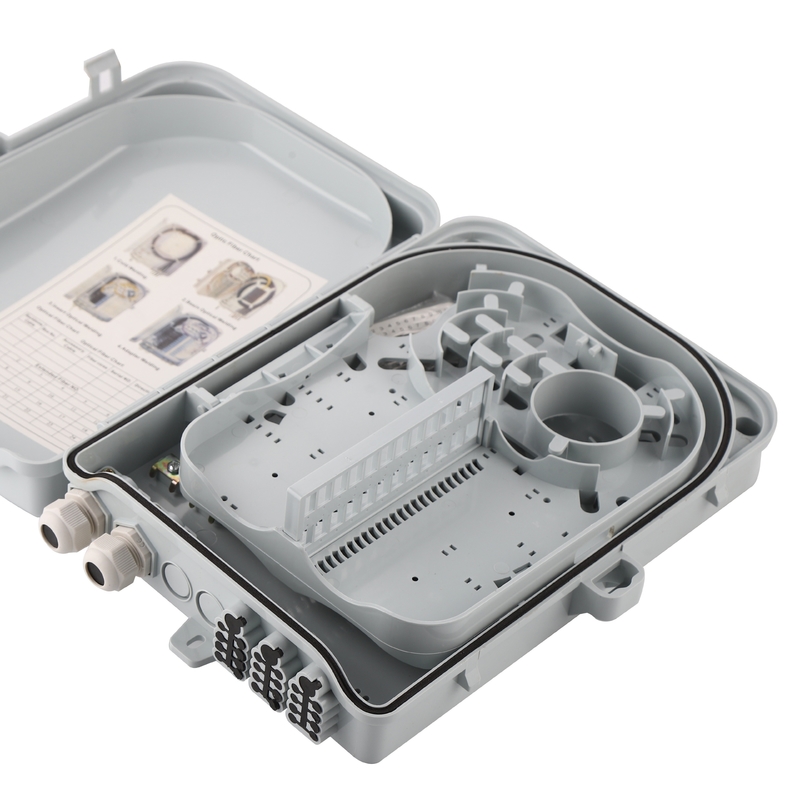

24 Core Fiber Optic Distribution Box PC ABS Material FTTH
  • 24 Core Fiber Optic Distribution Box PC ABS Material FTTH
  • 24 Core Fiber Optic Distribution Box PC ABS Material FTTH

24 Core Fiber Optic Distribution Box PC ABS Material FTTH

Place of Origin China
Brand Name Dawnergy
Certification CE ROHS ANATEL
Model Number DA-FDB-16Z-PA-3
Product Details
Brand:
Dawnergy
Material:
PC+ABS
Installation:
Indoor/Outdoor
Level Of Protection:
IP65
Application:
FTTH FTTB FTTX NETWORK
Installation Size:
150.5*130/312*230 Mm
Splicing:
24
No.of Adapters:
16 SC
High Light:

24 Core Fiber Optic Distribution Box

,

Outdoor FTTH Distribution Box

,

PC ABS Fiber Optic Distribution Box

Payment & Shipping Terms
Minimum Order Quantity
100
Price
15USD
Packaging Details
Carton Box
Delivery Time
7-14 days
Payment Terms
D/P, T/T, L/C, D/A
Supply Ability
5000K per day
Product Description

DA-FDB-16Z-PA-3 Fiber Optic Distribution Box



A Fiber Optic Distribution Box is a device used in fiber optic networks to terminate, splice, and distribute optical fibers. It serves as a central point for managing and organizing fiber optic cables and connections. The distribution box typically features multiple ports or compartments to accommodate incoming and outgoing fiber cables.



24 Core Fiber Optic Distribution Box PC ABS Material FTTH 0

Suitable for Mini type PLC splitter



Features



  • Total enclosed structure.
  •  Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
  • Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
  •  Feeder Cable, distribution cable, pigtails are running through individual paths without disturbing each other, cassette SC adapter panel,mini type PLC splitter installation, neat cabling, easy for maintenance.
  • Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way,easy for maintenance and installation.
  • Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Applications

  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks

Specifications

Max capacity

Size

(Pic 1)

Max Capacity Installation Size(Pic 2) Into the largest cable diameter (mm) Cable outlet (mm)

AxBxC

(mm)

Splicing No.of adapters Mini type PLC D*E /F*G(mm)
16 cores 327*258*88 24 16 SC 1:8 *2pcs 150.5*130/312*230 16 2*3~7

















Dimensions

24 Core Fiber Optic Distribution Box PC ABS Material FTTH 1



Product Inside Structure and Cable Ways

24 Core Fiber Optic Distribution Box PC ABS Material FTTH 2

Standard Package



No. Name Unit Quantity
1 Fiber Optic Distribution Box piece 1
2 Protective Sleeves pieces 16
3 Cable Ties pieces 10
4 Expansion Screws sets 4
5 Key piece 1
6 Stainless Strap (SUS304) 6M piece 1
7 Buckle pieces 2
8 Pole Mounted Bracket (SUS304) with screw pieces 2



Ordering Information

Part Number Name Description
DA-FDB-16Z-PA-3 Fiber Optic Distribution Box Gray; Material: ABS+PC; Suitable for 2pcs mini type 1x8 PLC splitter, Max capacity of adapters:16pcs; PLC splitter and adapter NOT included; Mid-span cable inlet ports and 16 drop cable outlet ports; With wall mount and pole mount accessories
