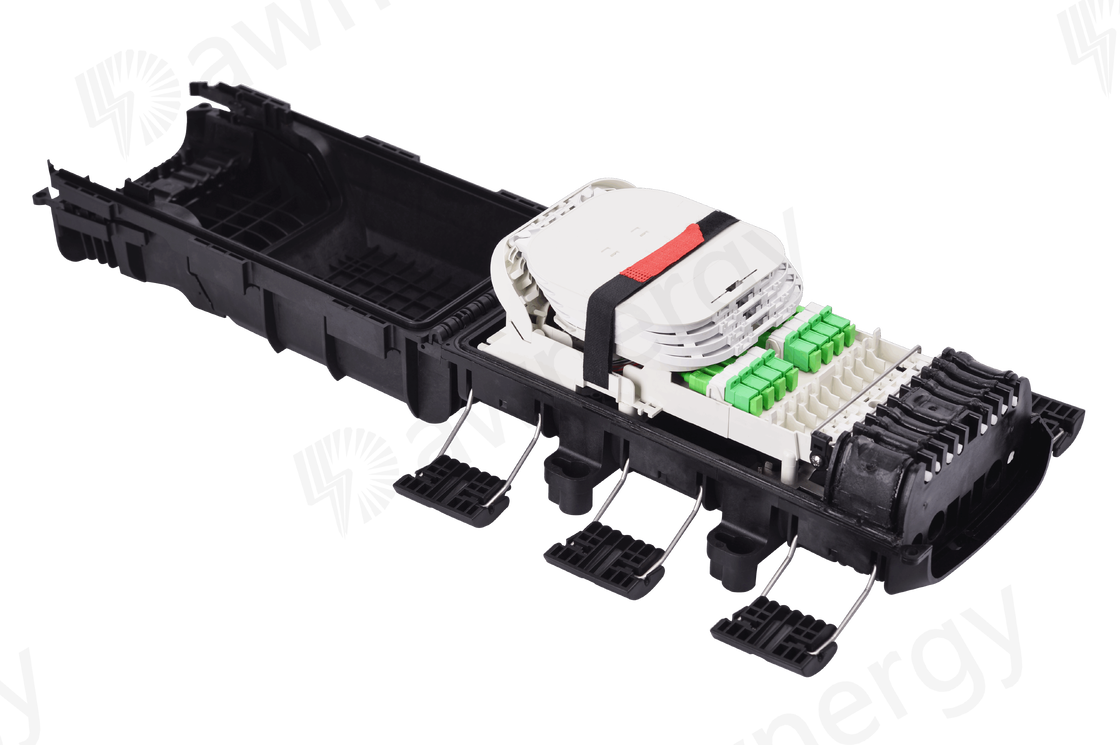

DA-FDB-72F-18 Fiber Optic Distribution Box
Dawnergy's fiber optic distribution boxes are used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, and distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.
Features
l Suitable for indoor or outdoor, wall-mounted, pole installation.
l Made of high-quality engineer plastic material (PP), good mechanical strength, elegant appearance, sturdiness and durability.
l Built-in Stacked splice tray, easy for open, the splice tray can be taken down, easy for installation and maintenance.
l Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.
Specifications
|
Parameters
|
Specification
|
|
Operating temperature
|
-40℃ ~+85℃
|
|
Relative humidity
|
≤95%(+30℃)
|
|
Atmospheric pressure
|
70KPa~106KPa
|
|
Insertion loss
|
≤10.5 dB
|
|
UPC return loss
|
≥50 dB
|
|
APC return loss
|
≥50 dB
|
|
The insulation resistance between the grounding device and the metal parts of the box
|
no less than 2*104MΩ/500V(DC);IR≥2*104MΩ/500V
|
|
The voltage resistance between the grounding device, and the box and its metal parts
|
no less than 3000V(DC)/min, no puncture, no flashover; U≥3000V
|
|
Size(A*B*C)
|
337*195*128mm
|
|
Material
|
PP
|
|
Protection level
|
IP68
|
|
Max Capacity
|
8(SC/APC or SC/UPC)
|
|
Capacity of FOSC(Bunchy)
|
72F
|
|
Installation size(D*E)
|
174*111mm
|
|
Into the largest
cable diameter
|
16mm*2 7mm*2
|
Standard Package
|
No.
|
Name
|
Unit
|
Quantity
|
|
1
|
Fiber Optic Distribution Box
|
piece
|
1
|
|
2
|
User Manual
|
piece
|
1
|
|
3
|
Pole Ring (Option)
|
piece
|
1
|
Installation
Mounting options
Wall fixation: use mounting ears.
Pole fixation: use mounting ears in combination with plastic or metal hose clamps.
Wall-mounted installation
Drill 4 holes into the wall based on the size in table 1, place the expansion bolt M6*50mm, place the box to match up the holes and use bolt to fasten.
Pole-mounted installation
