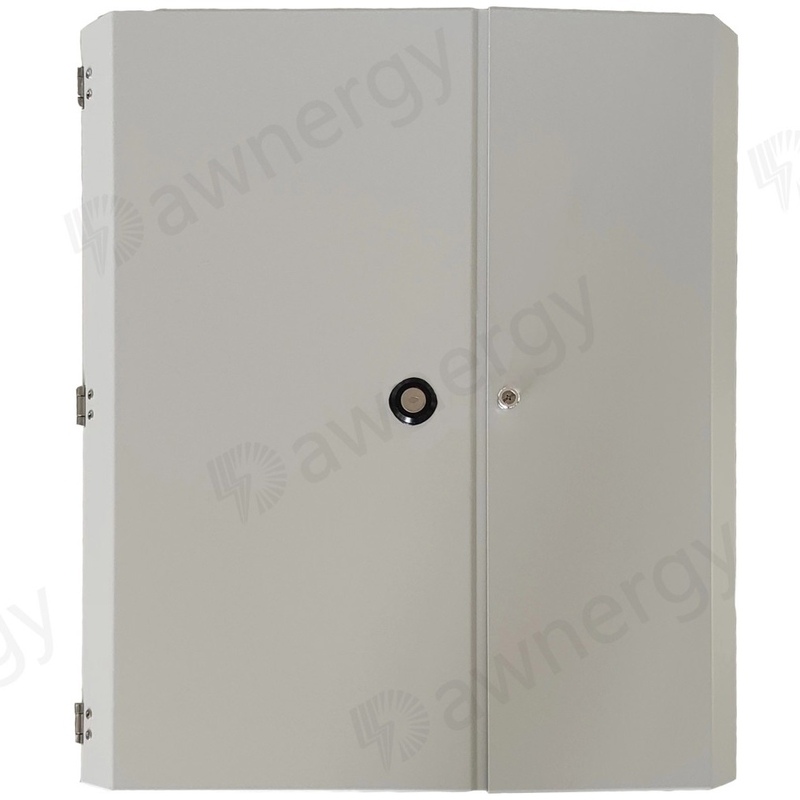

Wall Mounted Metal Fiber Optic Distribution Box FTTH Access Networks
  • Wall Mounted Metal Fiber Optic Distribution Box FTTH Access Networks
  • Wall Mounted Metal Fiber Optic Distribution Box FTTH Access Networks
  • Wall Mounted Metal Fiber Optic Distribution Box FTTH Access Networks

Wall Mounted Metal Fiber Optic Distribution Box FTTH Access Networks

Place of Origin CHINA
Brand Name Dawnergy
Model Number DA-MFDB-96TD
Product Details
Brand:
Dawnergy
Name:
Wall-mounted Metal Fiber Optic Distribution Box
Max. Capacity Of Adapter:
96
Adapter Type:
SC APC Or SC/UPC
Installation Method:
Wall Mounting
No. Of Fibers/Tray:
12F/24F Per Tray
Material:
1.2mm Cold-rolled Steel
Max Dimensions (mm):
477*410*156(96F)
High Light:

Wall Mounted FTTH Fiber Distribution Cabinet

,

Metal Fiber Optic Distribution Box

,

Metal Fiber Distribution Unit

Payment & Shipping Terms
Minimum Order Quantity
10
Price
120USD
Payment Terms
L/C, D/A, D/P, T/T
Product Description

DA-MFDB-96TD Wall-mounted Metal Fiber Optic Distribution Box



Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.



Applications

  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks



Specifications

Parameters Specification
Max. Capacity of Adapter 96
Adapter Type SC APC or SC/UPC
Installation Method Wall mounting
No. of Fibers/Tray 12F/24F per tray
Insulation Resistance Between the metal component and the ground is ≥2× 104m Ω
Withstand Voltage No breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min
Color Gray RAL7035
Material 1.2mm Cold-rolled steel
Max Dimensions (mm) 477*410*156(96F)







Standard Package

No. Name Unit Quantity
1 Fiber optic distribution box piece 1
2 Hose Clamp (12~20mm) pieces 3
3 Protection Tube 5mm 10m piece 1
4 Fusing Splice Protection Sleeve pieces 96
5 Cable Tie (3x150mm) pieces 20
6 Wall Mounted Kits (standard) set 1
