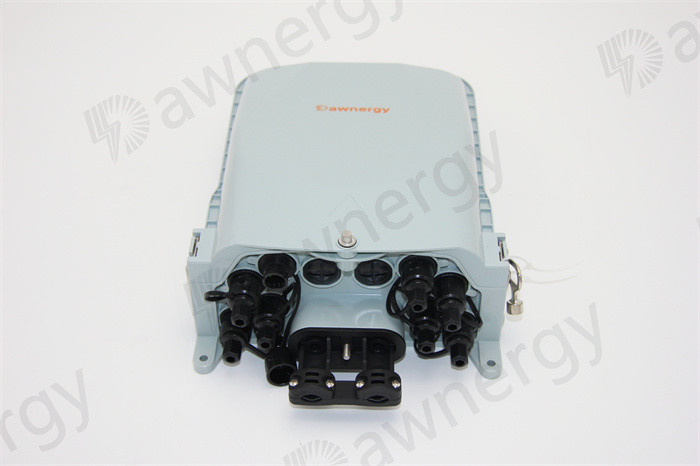

8 Core Pre-Terminated Waterproof Connector Fiber Optic Distribution Box

Basic Information
Place of Origin: China
Brand Name: Dawnergy
Certification: CE ROHS
Model Number: DA-FDB-8I-PA-1
Minimum Order Quantity: 500
Price: 37 USD
Packaging Details: Carton Box
Delivery Time: 7-14 days
Payment Terms: D/P, T/T, L/C, D/A
Supply Ability: 5000K per day
Material: PC+ABS Size: 295*208*102mm
PLC Installation: 1x8 Mini Type IP Grade: IP65
Application: FTTH, FTTB ,FTTX NETWORK Connector: Pre-terminated ,Water-proof
Core: 8 Core Installation Way: Wall-mounted ,Pole-mounted
High Light:

Fiber Distribution Box Mini Type Adapter

,

Drop Cable Fiber Optic Distribution Box

,

8 Core Fiber Optic Distribution Box

8 Core Pre-terminated Water-proof Connector Fiber Optic Distribution Box ​

Dawnergy’s DA-FDB-8I-PA-1 fiber optic distribution box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network system. The fiber splicing, splitting, distribution can be done in this box, and meanwhile it provides solid protection and management for the FTTx network building.

Features

Applications

Specifications

Environmental requirement

Thunder-proof technical datasheet

Material

Size

(mm)

Max Capacity Suitable PLC Splitter Type Cable Ports Into the Largest Cable Diameter(mm)
Input Output
PC+ABS 295*208*102 4pcs 24F splice trays 1x8 mini type PLC

1pc mid-span (2holes)

2pcs

Single cable port

8pcs

Option1: Huawei Mini SC water-proof type adapter

Option2: water-proof pre-connector protection tube

15


Product Installation

Wall-mounted installation,Pole-mounted installation



Option 1: Pre-connector Protection Tube

8 Core Pre-Terminated Waterproof Connector Fiber Optic Distribution Box 0



3x2mm drop cable pre-connect the fast connector with protection tube

8 Core Pre-Terminated Waterproof Connector Fiber Optic Distribution Box 1

Option 2: Huawei Type Mini SC Fiber Connector Installation



Rotate the arrow part of fiber connector counterclockwise and take out the dust cap.



8 Core Pre-Terminated Waterproof Connector Fiber Optic Distribution Box 2

The arrow part of fiber connector is above, insert fiber connector into the socket and then rotate the arrow part clockwise.



8 Core Pre-Terminated Waterproof Connector Fiber Optic Distribution Box 3

Suitable for Huawei Type Mini SC Water Proof Adapter



8 Core Pre-Terminated Waterproof Connector Fiber Optic Distribution Box 4

Ordering Information

DA-FDB-8I-PA-1-MSC

Gray; PC+ABS; With the adaptor panel for max. 8 pieces of Huawei Mini SC water-proof adapters, 1 mid-span port (2cable inlet holes) and 2pcs single cable ports for Max 15mm input cable; Dimensions (mm): 295*208*102; Wall mounting accessories included(pole mounted kits is option)



DA-FDB-8I-PA-1-WPT

Gray; PC+ABS; With the adaptor panel for max. 8pcs of water-proof pre-connector protection tube, 1 mid-span port (2cable inlet holes) and 2pcs single cable ports for Max 15mm input cable; Dimensions (mm): 295*208*102; Wall mounting accessories included(pole mounted kits is option)
