Indoor Outdoor Fiber Optic Distribution Box 16 Core
  • Indoor Outdoor Fiber Optic Distribution Box 16 Core

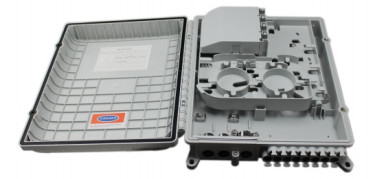

Indoor Outdoor Fiber Optic Distribution Box 16 Core

Place of Origin China
Brand Name Dawnergy
Certification CE ROHS ANATEL
Model Number DA-FDB-16Z-PA-3
Product Details
Material:
PC+ABS
Installation:
Indoor/Outdoor
Level Of Protection:
IP65
Application:
FTTH FTTB FTTX NETWORK
Installation Size:
150.5*130/312*230 Mm
High Light:

16 Core Optical Fiber Distribution Box

,

Fiber Optic Indoor Distribution Box

,

Fiber Distribution Box Indoor

Payment & Shipping Terms
Minimum Order Quantity
100
Price
15USD
Packaging Details
Carton Box
Delivery Time
7-14 days
Payment Terms
D/P, T/T, L/C, D/A
Supply Ability
5000K per day
Product Description

DA-FDB-16Z-PA-3 Fiber Optic Distribution Box

Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.



Features



1. Total enclosed structure.

2. Material: PC+ABS,wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Feeder Cable, distribution cable, pigtails are running

    through individual paths without disturbing each other, cassette SC adapter panel,

    mini type PLC splitter installation, neat cabling, easy for maintenance.

5.Distribution panel can be flipped up, feeder cable can be placed in a cup-joint way,

    easy for maintenance and installation.

6. Box can be installed by the way of wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.



Applications

  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks

Specifications

Max capacity

Size

(Pic 1)

Max Capacity Installation Size(Pic 2) Into the largest cable diameter (mm) Cable outlet (mm)

AxBxC

(mm)

Splicing No.of adapters Mini type PLC D*E /F*G(mm)
16 cores 327*258*88 24 16 SC 1:8 *2pcs 150.5*130/312*230 16 2*3~7

















Dimensions

Indoor Outdoor Fiber Optic Distribution Box 16 Core 0



Product Inside Structure and Cable Ways

Indoor Outdoor Fiber Optic Distribution Box 16 Core 1

Standard Package



No. Name Unit Quantity
1 Fiber Optic Distribution Box piece 1
2 Protective Sleeves pieces 16
3 Cable Ties pieces 10
4 Expansion Screws sets 4
5 Key piece 1
6 Stainless Strap (SUS304) 6M piece 1
7 Buckle pieces 2
8 Pole Mounted Bracket (SUS304) with screw pieces 2



Ordering Information

Part Number Name Description
DA-FDB-16Z-PA-3 Fiber Optic Distribution Box Gray; Material: ABS+PC; Suitable for 2pcs mini type 1x8 PLC splitter, Max capacity of adapters:16pcs; PLC splitter and adapter NOT included; Mid-span cable inlet ports and 16 drop cable outlet ports; With wall mount and pole mount accessories
