Optical: | Box | Material: | PC+ABS |
---|---|---|---|
Max Cable Diameter: | Input:16mm, Output 6MM,4MM,2*3MM,3MM | PLC Installation: | Support |
Installation: | Indoor/Outdoor | Level Of Protection: | IP65 |

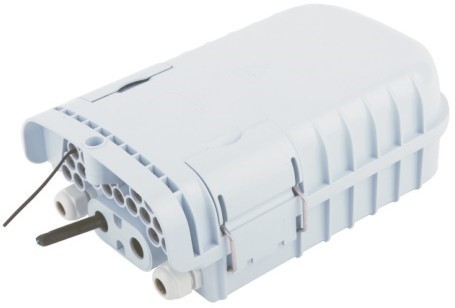

High Light: | 16 ports Indoor Fiber Termination Box,IP65 Indoor Fiber Termination Box,dawnergy Fdb Fiber Distribution Box |
Dimension
Model | Size(Pic 1) | Max Capacity | Installation Size(Pic 2) | ||
Unit:mm | Splitting | Splicing | PLC | Unit:mm | |
DA-FDB-16C-PP-1 | 287x172x102 | 16 | 16 | 1/8*2 | 187x70 |
Fiber Routing
Installation
