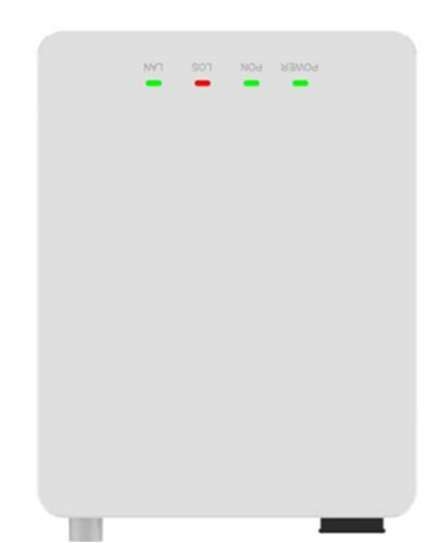

GPON ONT Single Family Unit (SFU)

Basics

Terminal Type

GPON ONT

Memory

8MB SPI Nor Flash

32MB CPU built-in

Power Supply

12VDC 0.5A

Power Consumption

≤ 5W

Dimension(mm)

90*70*27(W*D*H)

Net Weight

74g (device only)

GPON

Standards

ITU-T G.984 series

Optical Module

Class B+, BOSA

Bandwidth

2.488Gbps, Downstream

1.244Gbps, Upstream

Wavelength

1310nm, Transmit

1490nm, Receive

Max Distance

20 Km

TX-Output

0.5~5dBm

RX Input

-28dBm

Interfaces

Optical interface

1*GPON port, SC/APC

Ethernet

1*GbE RJ45 port

Power Input

DC 12V/0.5A

Buttons

Reset, Power On/Off

LEDs

Power, PON, LOS, LAN

Software

Basic Network

802.1D Bridge

Advanced

Service Flow Classification based on VLAN, IGMP Snooping

VLAN

802.1Q VLAN, QinQ

Management

HTTP/Web

Standard OMCI (G.984.4)

Environment

Operating Temp.

0 ~ 45℃ (32~113℉)

Storage Temp.

-20 ~ 65℃ (-4 ~149℉)

Operating Humidity

0% ~ 90% non-condensing
