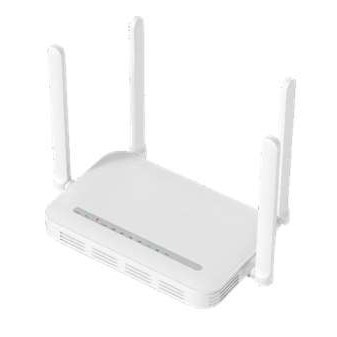

Dual-Band Wi-Fi 6 AX 3000 GPON ONT

Interfaces

Optical interface

1*GPON port, SC/APC

Ethernet

4*GE RJ45 port

Voice

1*FXS RJ11 ports

Power Input

DC 12V/1.5A

Buttons

Reset, Power On/Off, WPS

LEDs

Power, PON, LOS, Internet, LAN1~4;

2.4G,5G, WPS, TEL

GPON

Standards

ITU-T G.984, G.988

Optical Module

Class B+, BOB

Bandwidth

2.488Gbps, Downstream

1.244Gbps, Upstream

Wavelength

1310nm, Transmit

1490nm, Receive

Max Distance

20 Km

TX-Output

0.5~5dBm

RX Input

-8 to -28dBm

Wireless

Standards

IEEE 802.11 b/g/n/ax, 2T2R

5GHz, IEEE 802.11 a/n/ac/ax, 3T3R WMM, QoS, WPS 2.0

Data Rate

2.4GHz - 573Mbps(11ax@40MHz)

5GHz - 2402Mbps(11ax@160MHz)

Security

WEP, WPA/WPA2-PSK, WPA3-SAE

Antenna

4*5dBi External Omni-directional

Telephony

Protocol

SIP, H.248

Features

VAD, CNG, G.168 EC, RFC2833

Codec

G.722, G.711a/u, G.729

Fax

T.38, T.30/G.711

Ringing Capacity

55Vrms, 3 REN

Software Features

Basic

PPPoE, DHCP, DNS relay, NAT/NAPT,

NTP, IPv4/IPv6 Dual Stack, DS-lite

Advanced

Port Forwarding, ALG, UPnP, DMZ, VPN Passthrough, DDNS,

Multi-WAN, VLAN, SoftGRE, QoS

Security

SPI Firewall, MAC/IP/URL Filtering,

DoS Attack Protection, ACL

Multicast

IGMP v1/v2/v3 Snooping/Proxy,

MLD v1/v2

Management

System Log, Diagnostics, Http/Https, Telnet/SSH

TR069/TR098/TR104/TR181/TR143

Physical

Temperature

Operating: 0 ~ 45℃ (32~113℉)

Storage: -20 ~ 65℃ (-4 ~149℉)

Rel. Humidity

Operating: 5% ~ 95% (non-condensing)

Dimensions

195*125*35 (W*D*H)

Net Weight

420g (device only)

Housing Color

White or Black

Certifications

Certifications

CE, WiFi Alliance

Packaging

Packaging

1x GPON ONT

1x Power Adapter, 12VDC 1x Ethernet Cable, CAT5e 1x Quick Installation Guide
