DA-WC-Z Field Assembly Hardened Connector (Fast Connector)
  • DA-WC-Z  Field Assembly Hardened Connector (Fast Connector)
  • DA-WC-Z  Field Assembly Hardened Connector (Fast Connector)
  • DA-WC-Z  Field Assembly Hardened Connector (Fast Connector)

DA-WC-Z Field Assembly Hardened Connector (Fast Connector)

Place of Origin CHINA
Brand Name DAWNERGY
Model Number DA-WC-Z
Product Details
Applicable Cable:
2x3mm/2x5mm Flat Drop Cable
Return Loss (dB):
≤-55
Fiber Type:
SM
Housing Materials:
PC+ABS
Operating Temperature (℃ ):
-20 ~ +70
Tensile (N):
≥60
Protection Grade:
IP68
Connector Matching:
ZTE Connector
Highlight:

Fast Connector Hardened Connector

,

Field Assembly Hardened Connector

,

DA-WC-Z Hardened Connector

Payment & Shipping Terms
Minimum Order Quantity
1000
Payment Terms
L/C, D/A, D/P, T/T
Product Description

DA-WC-Z

Field Assembly Hardened Connector (Fast Connector)

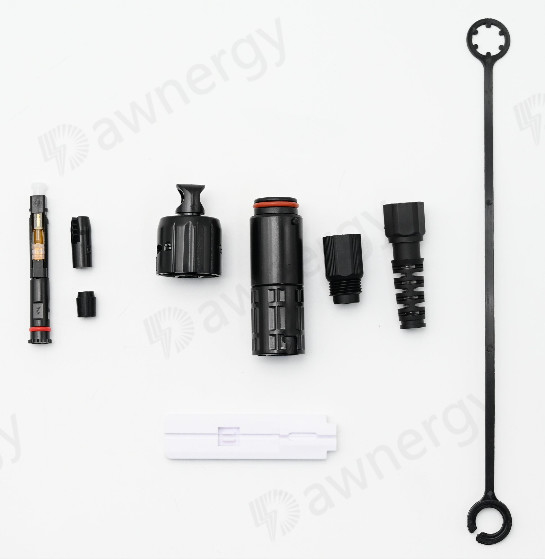

DA-WC-Z  Field Assembly Hardened Connector (Fast Connector) 0 DA-WC-Z  Field Assembly Hardened Connector (Fast Connector) 1 Dawnergy’s field assembly hardened connector is used for the optical link connection of the external access equipment of the passive optical network. Do not need to open the termination equipment for adding new subscribers. Assembly on site, easy operation, flexible cabling length, it’s the most efficient and cost-effective solution.

DA-WC-Z  Field Assembly Hardened Connector (Fast Connector) 2DA-WC-Z  Field Assembly Hardened Connector (Fast Connector) 3



Features

  • Assembly on site, simple operation, 10s for translator interchange, high increasing labor efficiency.
  • Do not need special tool.
  • Suitable for outdoor use.
  • Water-proof, dust-free, anti-corrosion, weather resistance.
  • Applicable for 2*3/2*5mm flat drop cable



Applications

  • FTTx Deployment
  • FTTA Deployment
  • Monitoring system



Field assembled Core (Ceramic C-Groove)

DA-WC-Z  Field Assembly Hardened Connector (Fast Connector) 4



Specification

Parameters Specification
Applicable Cable 2x3mm/2x5mm flat drop cable
Fiber Type SM
Insertion Loss (dB)

≤0.5 (Maximum value)

≤0.3 (Avg value)

Return Loss (dB) ≤-55
Housing Materials PC+ABS
Boot Material TPV
Groove Type Ceramic
Termination Fast connector SC/APC
Connector Matching ZTE Connector
Operating Temperature ( ) -20 ~ +70
Tensile (N) ≥60
Operating Humidity 0%~95%
Protection Grade IP68





Order Information

DA-WC-Z

Field assembly hardened connector; IP68; SC/APC fast connector; Applicable for 2*3/2*5mm flat drop cable.
