| Place of Origin | CHINA |
| Brand Name | Dawnergy |
| Model Number | 5.0mm, 5.5mm Fast Connector |

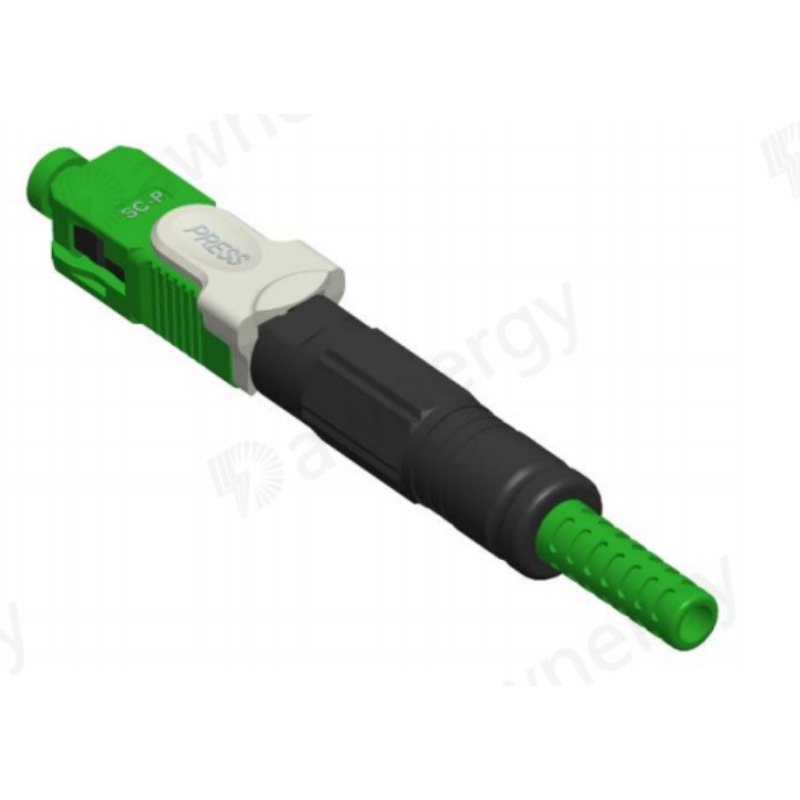

5.0mm, 5.5mm Fast Connector
Dawnergy’s pre-embedded fast connector terminates the end of an optical fiber, and enables quicker connection and disconnection than splicing. The connectors mechanically couple and align the cores of fibers so light can pass. Better connectors lose very little light due to reflection or misalignment of the fibers. It is widely used in FTTH projects.
Features
Applications
Specification
| Parameters | Specification |
| Applicable Cable |
DA-PFC-ASC50-SM:Ф 5.0mm Round Cable DA-PFC-ASC55-SM:Ф 5.5mm Round Cable |
| Fiber Type | G652D, G657A1, G657A2, G657B3 |
| Insertion Loss (dB) | ≤ 0.3 (Typical); ≤ 0.4 (Max) |
| Return Loss (dB) | ≥ 55 (Typical); ≥ 50 (Min) |
| Tension (N) | ≥90 (drop cable aramid yarn as strength member) |
| Mechanical Endurance | 500 times mating |
| Repeat Assembly | ≥3 Times |
| Assembly Time | ≤ 5mins |
| Operating Temperature (℃ ) | -40 ~ +85 |
Order Information
DA-PFC-ASC50-SM
Pre-embedded type, SC/APC; Applicable for Ф 5.0mm Round Cable, SM
DA-PFC-ASC55-SM
Pre-embedded type, SC/APC; Applicable for Ф 5.5mm Round Cable, SM
