24Fiber Rack Mount Patch Panel
  • 24Fiber Rack Mount Patch Panel

24Fiber Rack Mount Patch Panel

Place of Origin CHINA
Brand Name Dawnergy
Model Number DA-PP-S-24B-SC
Product Details
Product:
24Fiber Rack Mount Patch Panel
Applications:
Telecommunications\subscriber Loop\Fiber To The Home (FTTH)\LAN/WAN\CATV
Max. No. Of Cores:
24
Adapter Type:
SC Type (adapter Panel Can Be Designed Per Customer’s Requirement)
Box Material:
Cold-rolled Steel
Splicing Tray:
24 Cores Tray
High Light:

24Fiber Mount Patch Panel

,

Rack Mount Patch Panel

,

24Fiber Patch Panel

Payment & Shipping Terms
Payment Terms
L/C, D/A, D/P, T/T
Product Description

Dawnergy’s slide type rack-mount fiber optic patch panels are widely applied in Local Central Office. These are used for fiber optic cable fixation, protection, cable termination, patching etc. 19-inch rack mount for SC adapters.

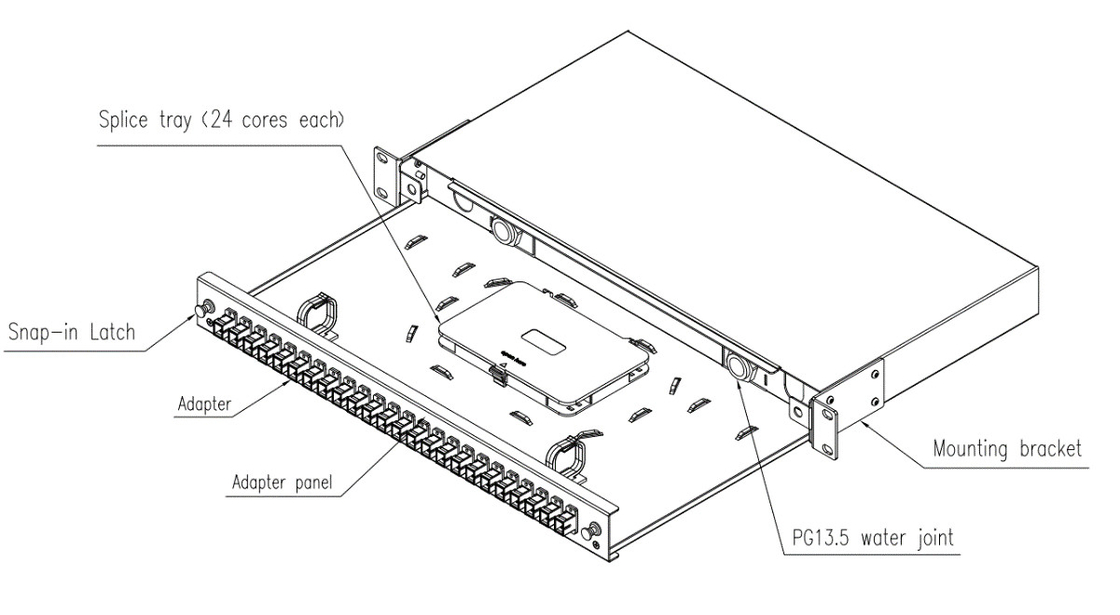

Structure Drawing

24Fiber Rack Mount Patch Panel 0



Features

  1. Standard size, light weight and reasonable structure
  2. Slide out drawer for easy cable management
  3. Compact design for space saving
  4. Various panel plate to fit different adapter interface
  5. Easy for management and operation



Applications

  1. Telecommunications subscriber loop
  2. Fiber to the home (FTTH)
  3. LAN/WAN
  4. CATV



Specifications

Parameters Specification
Max. No. of Cores 24
Adapter Type SC type (adapter panel can be designed per customer’s requirement)
Box Material Cold-rolled steel
Surface Powder coating black (RAL9005) or beige (RAL1001)
Splicing Tray 24 cores tray
Open Type Sliding type
Dimensions (mm) 483*240*44



Standard Package

No. Name Unit Quantity
1 Rack Mount Patch Panel set 1
2 Cable Ties pieces 6
3 Protective Sleeves pieces 24
4 Magic Stick Strip pieces 6
5 Cable Saddle pieces 2





Ordering Information

PN Name Description
DA-PP-S-24B-SC Rack Mount Patch Panel 19-inch rack, 1U, sliding type; Max. 24 cores, SC adapter panel

Note: Adapters and pigtails are optional
