Dome Type Fiber Optic Splice Closure
  • Dome Type Fiber Optic Splice Closure
  • Dome Type Fiber Optic Splice Closure
  • Dome Type Fiber Optic Splice Closure

Dome Type Fiber Optic Splice Closure

Place of Origin CHINA
Brand Name Dawnergy
Product Details
Max. Capacity Of Fibers:
288
No. Of Fibers/Tray:
24
No. Trays:
12
Sealing Method:
Mechanical
Dimensions (mm):
610 × Φ260
Weight (kg):
4
High Light:

Fiber Optic Splice Closure

,

Dome Optic Splice Closure

,

Optic Splice Closure

Payment & Shipping Terms
Payment Terms
L/C, D/A, D/P, T/T
Product Description

DA-FOSC-DM288-P-829-C

Dome Type Fiber Optic Splice Closure

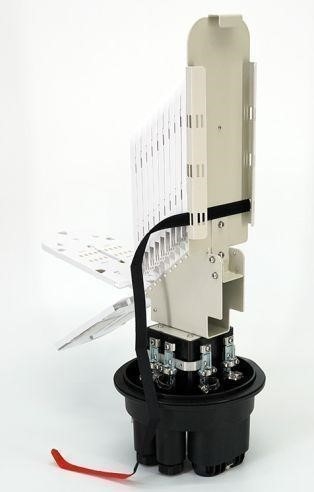

Dawnergy's Dome type fiber optic splice closure is a multifunctional fiber splice equipment which is designed for cable connection and branching. This FOSC has 1 oval cable port and 6 round cable ports. It is suitable for aerial, wall, pole, manhole installation.



Features

  • Cable diameter: 1 Uncut port support φ10~22mm cable, 6 branch ports support φ8~18mm cable.
  • The internal fiber tray adopts hinge connection design, and the optical fiber welding is convenient and fast.
  • Installation method: Suitable for aerial, wall, pole, manhole, etc.
  • The box body adopts mechanical seal, and the cable mouth adopts mechanical seal.

Applications

  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks

Specifications

Parameters Specification
Max. Capacity of Fibers 288
No. of Fibers/Tray 24
No. Trays 12
Number of In-out Ports 1*Oval port: Φ10mm~22mm; 6 *Round port :Φ8mm~18mm
Sealing Method Mechanical
Installation Method Aerial/ Wall /Pole / Manhole mounted
Insulation Resistance Between the metal component and the ground is ≥2× 104m Ω
Withstand Voltage No breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min
Protection Lever IP68
PLC Splitter Support Yes, (max support to 2x16 mini type)
Material PP+GF
Dimensions (mm) 610 × Φ260
Weight (kg) 4





Structure Drawing (mm)



Dome Type Fiber Optic Splice Closure 0Dome Type Fiber Optic Splice Closure 1



PLC Splitter Tray (option)

Dome Type Fiber Optic Splice Closure 2



PLC splitter tray is optional (max support to 2x16 mini type)



Loose Tube Storage Plate

Dome Type Fiber Optic Splice Closure 3



























Installation





Dome Type Fiber Optic Splice Closure 4Dome Type Fiber Optic Splice Closure 5

   Pole mount                                                        Wall mount



Standard Accessories

Dome Type Fiber Optic Splice Closure 6

Dome Type Fiber Optic Splice Closure 7



Optional accessory

Dome Type Fiber Optic Splice Closure 8



Ordering Information

Example:

DA-FOSC-DM288-P-829-C-144F

Dome type, Mechanical sealing; 144 fibers, 6 trays of 24 fibers/tray included; 7 cable ports (1 oval cable port and 6 round cable ports); max capacity: 288 fibers; material: PP+GF, dimensions (mm): 610 (H)*260 (D)





DA-FOSC-DM288-P-829-C-288F

Dome type, Mechanical sealing; 288 fibers, 12 trays of 24 fibers/tray included; 7 cable ports (1 oval cable port and 6 round cable ports); max capacity: 288 fibers; material: PP+GF, dimensions (mm): 610 (H)*260 (D)



Ps: The actual fiber core number shall be subject to the contract
