DA-OTDR60-M1 Optical Time-domain Reflectometer (OTDR)
  • DA-OTDR60-M1 Optical Time-domain Reflectometer (OTDR)

DA-OTDR60-M1 Optical Time-domain Reflectometer (OTDR)

Place of Origin CHINA
Brand Name Dawnergy
Certification CE
Model Number DA-OTDR60-M1
Product Details
Product:
Optical Time-domain Reflectometer
Applications:
Optical Network Installation
Wavelength:
MM 850/1300
Size:
227 X 160 X 70 Mm
Weight:
1.2kg
Connector:
FC/UPC (Interchangeable SC, ST)
High Light:

OTDR Optical Time-domain Reflectometer

,

DA-OTDR60-M1 Optical Time-domain Reflectometer

Payment & Shipping Terms
Minimum Order Quantity
1
Price
case by case
Packaging Details
Hard paper box package,wooden pallet
Product Description

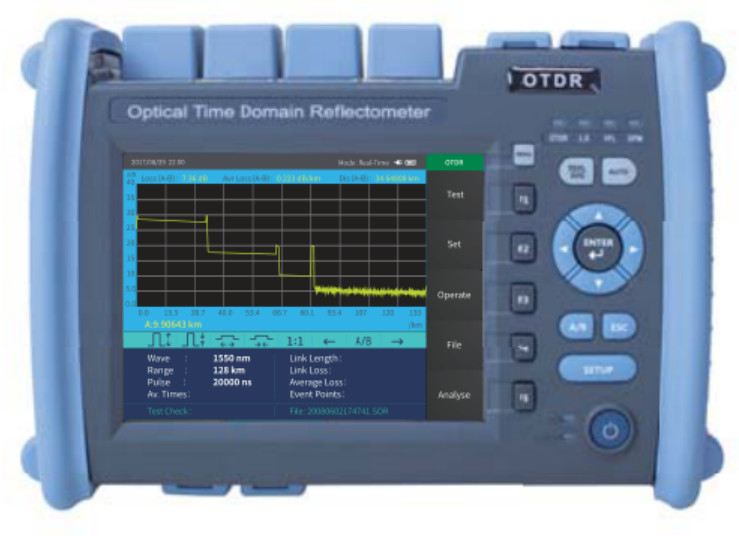

DA-OTDR60-M1 Optical Time-domain Reflectometer (OTDR)



The Dawnergy DA-OTDR60-M1 Muti-functional OTDR is a powerful tool designed to assist customers in efficiently conducting field tests and maintenance in the optical fiber industry. It combines various essential functions into a single device, ensuring convenience and effectiveness.

Features

  • Detection of online test, APD active protection
  • Unique automatic diagnosis function of test results
  • Batch processing of data, printing report forms
  • Support MM test
  • Standard SOR file output format
  • Key + touch screen dual operation mode

Applications

  • Optical network installation and troubleshooting
  • Backbone optical network
  • WAN, access network and LAN fiber test


Specifications



Parameters Specification
Model DA-OTDR60-M1
Wavelength (nm) MM 850/1300
Max Dynamic Range 28/26 dB
Event Blind Zone 1m
ATT Blind Zone 6m
Test Range 500m/1km/2km/4km/8km/16km/32km/64km/128km/256km
Pulse Width 3/5/10/30/50/80/160/320/500/800/1000/3000/5000/8000/10000/20000ns
Range Accuracy ± (0.75m + 5×10-5 ×distance + sampling space)
Loss Resolution ± 0.001dB
Loss Accuracy ± 0.05dB/dB
Sample Points 16k~256k
Sample Resolution 0.05m~16m
Reflection Accuracy ±3dB
File Format SOR standard file format
Loss Measurement Mode 4-point method/ 5-point method
Laser Safety Lever Class II
Refresh Rate 3Hz
Data Storage Internal storage: ≤3000 curves; External storage: 4G bit
Connector FC/UPC (Interchangeable SC, ST)
Data Interface USB, Mini-USB, 100M Ethernet port
OPM
Wavelength Range 800nm~1700nm
Connector Universal joint FC/SC/ST
Test Scope -50dBm ~ +26dBm
Uncertainty ±5%
Calibration Wavelength 850/980/1300/1310/1490/1550/1625/1650nm
LS
Laser Type FP-LD
Wavelength Consistent with OTDR output wavelength
Output Power ≥-5 dBm
Stability CW, ±0.5dB/15min
Connector FC/UPC (Interchangeable SC, ST)
VFL
Wavelength 650±20nm
Output Power ≥10mW
Mode CW/1Hz/2Hz
Connector FC/UPC (Interchangeable SC, ST)
Other
Display 5.6-inch color LCD + touch screen
Power Supply

AC/DC adapter: input: 100v~240v, 50/60Hz, 0.6A; Output: 12v~19v, 1.5A
Li-Battery: 7.4v, 5200mAh

Working Temperature -10~+50℃
Storage Temperature -40~+70℃
Weight 1.2kg
Size 227 x 160 x 70 mm



Standard Package

No. Product Unit Quantity
1 OTDR set 1
2 Power Adapter piece 1
3 U disk (software and user’s manual) piece 1
4 Touch Pen piece 1
5 Data Line piece 1
6 OTDR SC Adapter piece 1
7 OPM SC Adapter piece 1
8 Instruction Manual piece 1
9 Calibration Certification piece 1
10 Clean cotton piece pieces 10
11 Leather knob piece 1
12 Special backpack for instrument piece 1


Ordering Information

Part Number Name Description
DA-OTDR60-M1 OTDR MM 850/1300nm, dynamic Range: 28/26dB, FC/UPC (Interchangeable SC, ST), With power meter, light source, VFL function
