In-Line Type Fiber Optic Splice Closure 48 Core
  • In-Line Type Fiber Optic Splice Closure 48 Core
  • In-Line Type Fiber Optic Splice Closure 48 Core

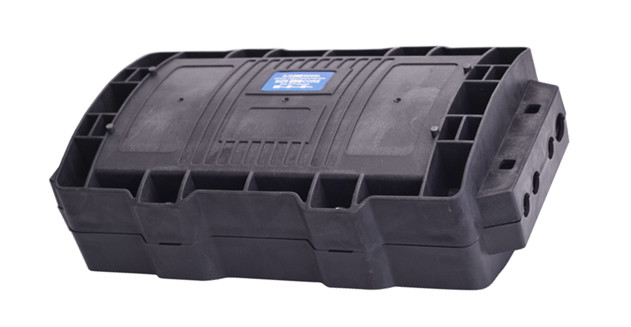

In-Line Type Fiber Optic Splice Closure 48 Core

Place of Origin China
Brand Name Dawnergy
Certification CE
Model Number DA-FOSC-IM48-H012-1
Product Details
340 X 180 X 110
Max. Capacity Of Fibers:
High Light:

Fiber Optic Joint Closure


Optical Fiber Closure 48 Core


PC Fiber Dome Closure

Payment & Shipping Terms
Minimum Order Quantity
20 USD
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
500 per day
Product Description

DA-FOSC-IM48-H012-1 48 Core In-line Type Fiber Optic Splice Closure

Dawnergy's In-line type fiber optic splice closure is a multifunctional fiber splice equipment which is designed for connection, branching and connection. This FOSC has 8 cable ports. It is suitable for aerial, wall-mounting, pipe-lined and direct buried. We are always in the purse of doing research and developing the telecommunication connection equipment. Our FOSC is your reliable choice to guarantee the quality of information transform.



  • Advanced internal design with enough space for fiber splicing and storage
  • Long lasting body with high-strength PC plastic material
  • Cable ports with mechanical sealing
  • Portable, impact resistant, corrosion resistant and lightning resistant



  • FTTH access networks
  • Telecommunication networks
  • CATV networks
  • Local Area Networks



Parameters Specification
Max. Capacity of Fibers 48
Max. No. of Fibers/Tray 2pcs (24fibers per tray)
Number of In-out Ports 4 (pieces) on each side (total 8 pieces)
Cable Diameter (mm) 6 for φ6-8mm cables, 2 for φ9-12mm cables
Installation Method Aerial, duct, direct buried
Insulation Resistance Between the metal component and the ground is ≥2× 104m Ω
Withstand Voltage No breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min
Fiber Radius of Curvature ≥30mm (internal control 40mm), no additional loss in the fiber tray
Material PC
Dimensions H x W x D (mm) 340 x 180 x 110


Standard Package

No. Name Unit Quantity
1 Fiber Optic Splice Closure set 1
2 Accessory Bag piece 1
3 Aerial-mounted Kit piece 1


Ordering Information



In-line type, mechanical sealing; 48 fibers, 2 trays of 24 fibers/tray included; 8 cable ports, max capacity: 48 fibers; material: PC, dimensions (mm): 340 x 180 x 110; With accessories for aerial application


Ps: The actual fiber core number shall be subject to the contract
