Material: | PP | Application: | FTTH FTTB FTTx NETWORK |
---|---|---|---|
Dimension: | 120 (D) × 300 (H) Mm | Max. Capacity Of Fibers: | 48 |
Protection Lever: | IP68 | ||
High Light: | 48 Core Fiber Dome Closure,Dome Type Fiber Optic Closure,Networks Fiber Optic Splice Closure |

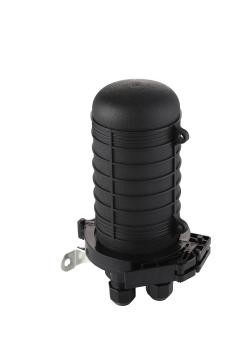

Dawnergy's Dome type fiber optic splice closure is a multifunctional fiber splice equipment which is designed for connection, branching and connection. This FOSC has 4 cable ports. It is suitable for pole mounting, pipe-lined and direct buried. We are always in the purse of doing research and developing the telecommunication connection equipment. Our FOSC is your reliable choice to guarantee the quality of information transform.
Features
Applications
Specifications
Parameters | Specification |
Max. Capacity of Fibers | 48 |
No. of Fibers/Tray | 12 (6slots, each slot can fix 2pcs splicing sleeves) |
Max. No. Trays | 4 |
Number of In-out Ports | 4 |
5mm Drop Cable Sealing Plug | 3pcs (each sealing plug suitable for 4pcs 5mm drop cable) |
Sealing Method | Mechanical |
Installation Method | Duct and pole mounting |
Insulation Resistance | Between the metal component and the ground is ≥2× 104m Ω |
Withstand Voltage | No breakdown and no arcs between the metal component and the ground under the action of 15kV (DC)/1min |
Protection Lever | IP68 |
Material | PP |
Dimensions (mm) | 120 (D) × 300 (H) |
Splice Tray
5mm drop cable sealing plug
each sealing plugs suitable for 4pcs 5mm drop cable
Standard Package
1.Main body:1 set
2.Splice tray: configuring according to the quantity of cores
3.Splice package: configuring according to the quantity of cores
4. Pole mounted kits:1 set
5. Air Valve:1pc
6. 4holes 5mm drop cable sealing plug: 3pcs
Ordering Information
Example:
DA-FOSC-DM48-P-105M-12C-4
Dome type, Mechanical sealing; 12fibers, 1 tray of 12 fibers/tray (6slots, each slot can fix 2pcs splicing sleeves) included; 4 cable ports; Max capacity: 48 fibers; material: PP, dimensions (mm): 120 (D) ×300 (H); With accessories for pole mounting, air valve and 3pcs 5mm drop cable sealing plugs
DA-FOSC-DM48-P-105M-24C-4
Dome type, Mechanical sealing; 24fibers, 2 trays of 12 fibers/tray (6slots, each slot can fix 2pcs splicing sleeves) included; 4 cable ports; Max capacity: 48 fibers; material: PP+GF, dimensions (mm): 120 (D) ×300 (H); With accessories for pole mounting, air valve and 3pcs 5mm drop cable sealing plugs
DA-FOSC-DM48-P-105M-48C-4
Dome type, Mechanical sealing; 48fibers, 4 trays of 12 fibers/tray (6slots, each slot can fix 2pcs splicing sleeves) included; 4 cable ports; Max capacity: 48 fibers; material: PP+GF, dimensions (mm): 120 (D) ×300 (H); With accessories for pole mounting, air valve and 3pcs 5mm drop cable sealing plugs
Ps: The actual fiber core number shall be subject to the contract
