DA-FDB-12A-A-8 Fiber Optic Distribution Box Moisture Resistant

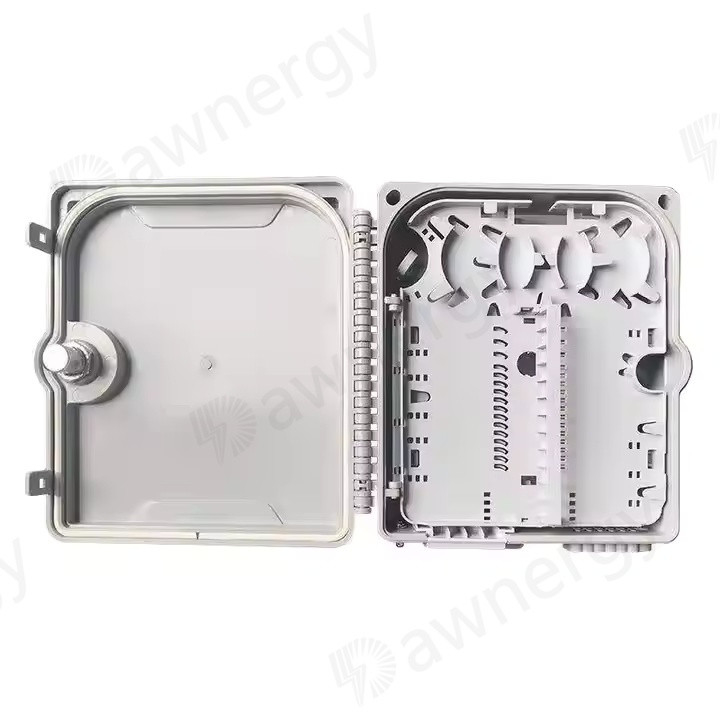

DA-FDB-12A-A-8 Fiber Optic Distribution Box

Dawnergy’s fiber optic distribution boxes are widely used as a termination point for the feeder cable to connect with the drop cable in the FTTx communication network system. The fiber splicing, splitting and distribution can be done in these boxes. These series of boxes provide solid protection and management for the FTTx networks.

Suitable for Mini type PLC splitter

Features

1. Total enclosed structure.

2. Material: ABS , wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.

3.Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, distribution...etc all in one.

4. Feeder Cable, distribution cable, pigtails are running through individual paths without disturbing each other, Mini type PLC splitter installation, neat cabling, easy for maintenance.

5.Distribution panel can be flipped up, easy for maintenance and installation.

6. Box can be installed by wall-mounted or poled-mounted, suitable for both indoor and outdoor uses.

Applications

• FTTH access networks
• Telecommunication networks
• CATV networks
• Local Area Networks

Specifications

1. Environmental specification

Working temperature:-40℃～+85℃

Relative humidity:≤85%(+30℃)

Atmospheric pressure:70KPa～106Kpa

2. Thunder-proof technical specification

• The grounding device is isolated with the cabinet, isolation resistance is less than 2 MΩ/500V (DC)
• The withstand voltage between grounding device and cabinet is no less than 3000V(DC)/min, no puncture, no flashover
