DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1
  • DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1
  • DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1
DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1

DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1

Place of Origin CHINA
Brand Name Dawnergy
Product Details
Applicable For:
3.0 X 2.0 Mm And 5.0 X 2.0 Mm Drop Cable
Optical Fiber Diameter:
125μm
Tight Buffer Diameter:
250μm
Fiber Type:
G652D, G657A1
Operation Time:
About 30s (without Fiber Cut)
Success Rate:
>98%
Highlight:

G652D Fiber Optic Mechanical Splice

,

G657A1 Fiber Optic Mechanical Splice

,

G652D Fiber Optic Mechanical Splice

Payment & Shipping Terms
Payment Terms
L/C, D/A, D/P, T/T
Product Description

DA-FOMS Fiber Optic Mechanical Splice

Dawnergy’s fiber optic mechanical splice will play an irreplaceable role in FTTH access, fiber optic quick connector on-site termination technology just to solve this problem, Its main internal component is a precision v-groove, after the two pigtails dialing fiber using a cold connector to achieve the two pigtails docking; without the need for fusion splicing operation is convenient and fast, low cost of connection.

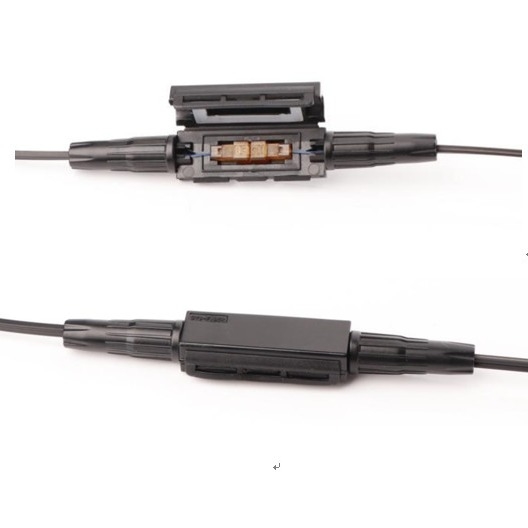

DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1 0





Features

  • Structural use of non-pre-embedded fiber-optic structure.
  • The reliability of fiber optic clamping is very good.
  • Good stability of connection.
  • Small insertion loss.
  • The use of good maintenance.
  • The installation speed is very fast.
  • Meet IP65 waterproof requirements.



Applications

  • FTTH project
  • PON network





Specification

Parameters Specification
Applicable for 3.0 x 2.0 mm and 5.0 x 2.0 mm drop cable
Working wavelength 1310nm, 1490nm, 1550nm
Length 96.5mm
Optical fiber diameter 125μm
Tight buffer diameter 250μm
Fiber type G652D, G657A1
Operation time about 30s (without fiber cut)
Insert loss Max≤0.15dB
Return loss Min≥50dB
Success rate >98%
Reusability times ≥5times
Force holds 2 x 3 mm cable type at the beginning of the fast connector ≥40 N, loss ≤0.2 dB (Test time: 2 minutes)
Tighten Strength of Naked Fiber >3 N ; IL change ≤ 0.2dB (Test time: 2 minutes)
Life Time ≥ 10 years
Working temperature -10 - +60 ℃
Storage Temperature 40 ~ +85 C
Waterproof grade IP65



Adapter

Every 20pcs mechanical splice have 1 adapter.

DA-FOMS Fiber Optic Mechanical Splice G652D, G657A1 1



Package

50pcs in an inner box.1000pcs in an outer carton.
