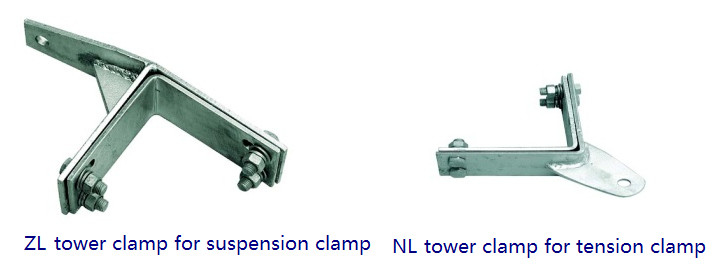

DA-ADSS-TCTC/TCSC Series Tower Clamp
Dawnergy Telecom’s DA-ADSS-TCTC/TCSC tower clamp is used for the connection of tension clamp and suspension clamp on tower.
Features
Specifications
| Item | Parameter | |
| Material | Flat steel (80mm width × 6mm thickness) | |
| Surface | Hot dip galvanizing | |
| Thickness of Galvanizing Coating (um) | ≥85 | |
| Suitable Tower Main Material (angle steel) Width (mm) | 125, 145 or as request | |
| Model | Description | |
| DA-ADSS-TCTC-T125 | Used for tension clamp, suitable for tower main material (angle steel) width: 101~125mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) | |
| DA-ADSS-TCTC-T145 | Used for tension clamp, suitable for tower main material (angle steel) width: 126~145mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) | |
| DA-ADSS-TCSC-T125 | Used for suspension clamp, suitable for tower material (angle steel) width: 101~125mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) | |
| DA-ADSS-TCSC-T145 | Used for suspension clamp, suitable for tower material (angle steel) width: 126~145mm; Material: hot dip galvanized flat steel, dimensions (mm): 80 (W) × 6 (T) | |
Applications
