DA-FOT-CS05 FTTH Drop Cable Stripper
  • DA-FOT-CS05 FTTH Drop Cable Stripper

DA-FOT-CS05 FTTH Drop Cable Stripper

Place of Origin CHINA
Brand Name Dawnergy
Model Number DA-FOT-CS05
Product Details
Name:
FTTH Drop Cable Stripper
Applicable Fiber:
1/2 Core Fiber
Applicable Scope:
3mm(W)*2mm(H)
Model:
DA-FOT-CS05
Payment & Shipping Terms
Minimum Order Quantity
10
Delivery Time
7~14day
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
1000 pre day
Product Description

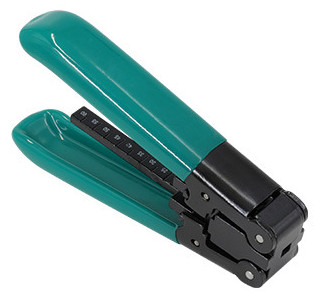

DA-FOT-CS05 FTTH Drop Cable Stripper

Dawnergy’s DA-FOT-CS05 FTTH Drop Cable Stripper is a widely used general tool. It is mainly used for strip 3x2mm FTTH drop cable jacket.





Features

  • Tool for FTTH flat drop optical cable
  • Simple jacket removing without fiber damaging
  • Lightweight and compact
  • the reinforcement material can be cut like reinforced plastic reinforcement & wire material



Applications

  • Fusion Splice
  • FTTH Project



Specifications

Parameters Specification
Applicable fiber 1/2 core fiber
Applicable scope 3mm(W)*2mm(H)
Fiber coated diameter Φ0.25&Φ0.9
Fiber cladding diameter 125um
External size 30mm(W)*110mm(D)*20mm(H)
Blade life Metal reinforcing core 1000 times Non-metal reinforcing core 2000 times



Ordering Information

Model Name Description
DA-FOT-CS05 FTTH Drop Cable Stripper Universal stripper for 3x2mm FTTH drop cable;
