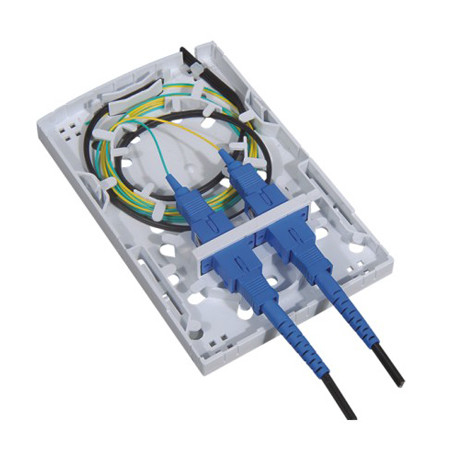

DA-FDB-2X-A-1 2ports Fiber Optic Socket
  • DA-FDB-2X-A-1 2ports Fiber Optic Socket
  • DA-FDB-2X-A-1 2ports Fiber Optic Socket
  • DA-FDB-2X-A-1 2ports Fiber Optic Socket

DA-FDB-2X-A-1 2ports Fiber Optic Socket

Place of Origin CHINA
Brand Name Dawnergy
Certification CE/ANATEL/ROSH
Model Number DA-FDB-2C-A-1
Product Details
Mode Of Application:
Single And Duplex Modes
Tight Cladding Diameter:
250/900μm
Fiber Diameter:
125μm (642/657)
Applications:
3.0 X 2.0mm Drop Cable Or Indoor Cable
Number Of Adapter And Splitter:
4 Pieces-SC Adapter Or 4 Pieces-duplex LC
Cable Entries:
Supporting Uncut
Highlight:

0.2dB Fiber Optic Socket

,

FS 2S Fiber Optic Socket

,

Dawnergy ftth splitter box

Payment & Shipping Terms
Minimum Order Quantity
10
Price
2USD
Delivery Time
10-20 work days
Payment Terms
L/C, D/A, D/P, T/T
Supply Ability
1000pcs per day
Product Description

DA-FDB-2X-A-1/Fiber Socket Panel, Wall-mounted, Splitter Distribution Box, Customer Terminal Box



Descriptions


DA-FDB-2X-A-1 is used in the end termination of residential buildings and villas, to fix and splice with pigtails, can be installed on the wall, may adapt the variety of optical connection styles, the optical fiber can be managed effectively.

Features:

  • Small size, lightweight, pleasing in appearance
  • Suitable for indoor wall-mount
  • All modules are free of welding
  • Can be installed on the wall with mechanical protective function
  • May adapt variety of optical connection styles
  • Set strengthen device and fiber optic cable mounting seat
  • All modules can be configured on customer's choice

Working area:

  • Telecommunication network, metropolitan area network, optical fiber communication system
  • Optical testing equipment/instrument
  • CATV optical fiber, optical fiber sensor
  • Optical fiber broadband access network, FTTH optical fiber
  • Optical fiber distribution frame, frame type and wall type optical fiber distribution unit

Performance index:



Item Technical data
Model number DA-FDB-2X-A-1
Dimensions 150 x 110 x 33mm
Installation Wall-mounting (indoor)
Cable entries Supporting uncut
Number of adapter and splitter 4 pieces-SC adapter or 4 pieces-duplex LC
Applications 3.0 x 2.0mm drop cable or indoor cable
Fiber diameter 125μm (642/657)
Tight cladding diameter 250/900μm
Mode of application Single and duplex modes
Tensile strength >50N
End-use temperature -40 to +85°C
Adapter SC and FC
Insertion loss ≤0.2dB (1310-1550Nm)
Output 2
