| Place of Origin: | CHINA |
|---|---|
| Brand Name: | DAWNERGY |
| Certification: | CE/ VDE/ TELCORDIA |
| Model Number: | N/A |
| Minimum Order Quantity: | 100KM |
| Price: | 50USD |
| Packaging Details: | Wooden DRUM |
| Delivery Time: | 10-20 work days |
| Payment Terms: | T/T, L/C, D/A, D/P |
| Supply Ability: | 100,000KM PER DAY |
| Application: | Military | CORES: | 2 To 12 Cores |
|---|---|---|---|
| Main Cable: | Outdoor Tactical Fiber Optic Cable | Fiber: | G652D Or G657A |
| High Light: | Outdoor tactical fiber optic cable assembly,military tactical fiber optic cable assembly,Outdoor military fiber optic cable assemblies |
||
Outdoor tactical fiber optic cable assembly with military tactical connector

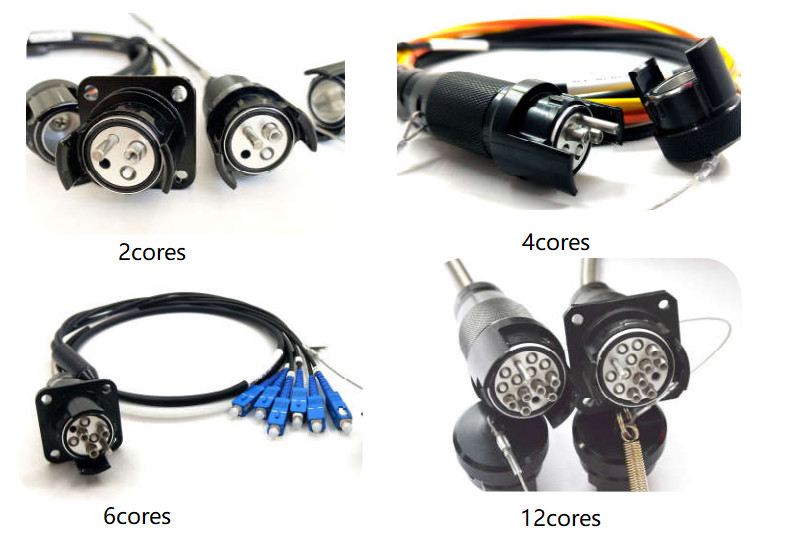

YZ Connector is designed for military field fiber optic cable supporting, natural bayonet locking structure can be realized plug to socket, plug to plug, socket to socket any connection. With multi-core once connected and blind insertion; connection loss, high reliability; rugged, waterproof, dustproof, resistance to harsh environments, etc. This can be used in a variety of optical fiber communication network field army, military computer systems, airborne or ship borne equipment, repair and other outdoor optical cable system temporary connection. Product specifications are: 2 pins, 4 pins, 6-pins, 8-pins, 12 pins. Products are mainly used for: military emergency communications, broadcast television, emergency rush through optical fiber communications, mining, oil and so on.
Connection Scheme
Connector Specifications
| Parameters | Specification | |
| Insertion Loss(dB) | ≤0.8 SM | |
| Return Loss(dB) | ≥50 SM | |
| Main Cable | Fiber Count | 2~12 |
| Fiber Type | SM | |
| Color | Black | |
| O. Diameter (mm) | 7.0±0.2 | |
| IP Protection Lever | IP67 | |
| Operating /storage Temperature(°C) | -40~+85 | |
| Label | As customer request | |
Cable Drum with YZ Connector plug (2~12cores)
YZ Connector socket with SC/FC/LC connector pigtail (2~12cores)
