EPON 4PON 4GE Combo FHL104C Device For FTTB OLT Optical Line Termination
  • EPON  4PON 4GE Combo FHL104C Device For FTTB OLT Optical Line Termination

EPON 4PON 4GE Combo FHL104C Device For FTTB OLT Optical Line Termination

Place of Origin CHINA
Brand Name DAWNERGY
Certification CE,FCC
Model Number FHL104C
Product Details
Brand:
Dawnergy
Name:
EPON OLT
Data Interface:
4 SFP PON Ports, 4 Gigabit SFP Ports, 4 Combo Gigabit Up-link Ports
Management Rate:
1* 10/100Base-T RJ45 Port,with Management
Power Supply:
AC 220V /1A Or DC 48V
EPON Standard:
Compatible With IEEE802.3ah YD/T1475-2006 And CTC2.1standard
NMS:
Supports Local And Remote CLI Configuration
Dimension:
175mm * 442mm*44mm
High Light:

FTTB OLT Optical Line Termination

,

4PON Optical Line Terminal

,

Optical Line Terminal FHL104C

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
149USD
Packaging Details
Carton Box
Delivery Time
15 working days
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
2K Per Day
Product Description

EPON OLT 4PON 4GE Combo FHL104C Device For FTTB OLT



Overview

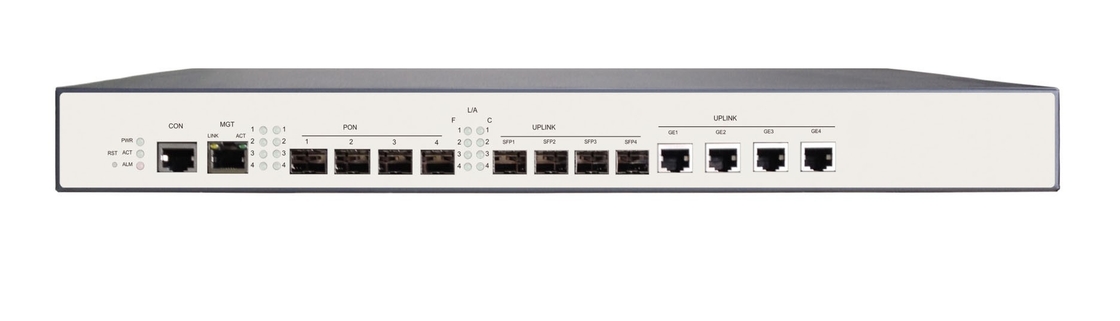

EPON  4PON 4GE Combo FHL104C Device For FTTB OLT Optical Line Termination 0





Characteristics

  • Suitable for county and town-level fiber optic network access and monitoring transmission, our solution fulfills the requirements for FTTH (Fiber to the Home), providing comprehensive access to IP telephony, broadband data, IPTV, and more.
  • Provides 4 SFP PON ports and 4 Gigabit SFP ports and 4 Combo Gigabit up-link ports;
  • Maximum support 256 ONT(1:64 splitter);
  • Provides configuration for RS232 serial port (RJ45) and management for external network port;
  • Supports CLI command line;
  • Supports L2 exchange, L3 basic routing function, 4G switching broadband;
  • Under the 1:32 splitter, the distance between the OLT and the ONU can reach 20km.
  • Support WEB management and SNMP management, integrated switch function
  • 1U rack mount, built-in cooling fan, good heat dissipation, stable operation



Specification



Item Specification
Dimension 175mm * 442mm*44mm
Weight 2.5kg
Data interface 4 SFP PON ports, 4 Gigabit SFP ports, 4 Combo Gigabit up-link ports
Management 1* 10/100Base-T RJ45 port,with management
Indicator light RUN: system is running, ALM: system alarms, PWR: power indicator
PON1 - PON4 two indicator lights for each port show: PON port LINK status, and port protection

GE4 two indicator lights for each port show:

Gigabit up-link port link status and running status

Power supply AC 220V /1A or DC 48V
Operation

Working temperature: -5〜+50℃

working humidity:10〜90%(non-condensation)

EPON standard Compatible with IEEE802.3ah YD/T1475-2006 and CTC2.1standard
DBA Support fixed bandwidth, guaranteed bandwidth, peak bandwidth, weight configurations and the minimum bandwidth allocation
Security Support PON network and AES Triple stir encryption, support ONU MAC address binding and filtering
Multicast Support IGMP Snooping and IGMP Proxy,support CTC
QoS support 802.1p priority queue scheduling, supporting terminal to terminal QOS configuration
ACL Support destination IP, source IP, destination MAC, source MAC, destination protocol port number, source protocol port number, SVLAN, DSCP, TOS, Ethernet type, IP protocol type, etc
Supports packet filtering rules based on the above
Support COS setting which base on above rules, IP priority setting, mirroring, rate limiting and port redirection
Alarm Support alarm
NMS supports local and remote CLI configuration
