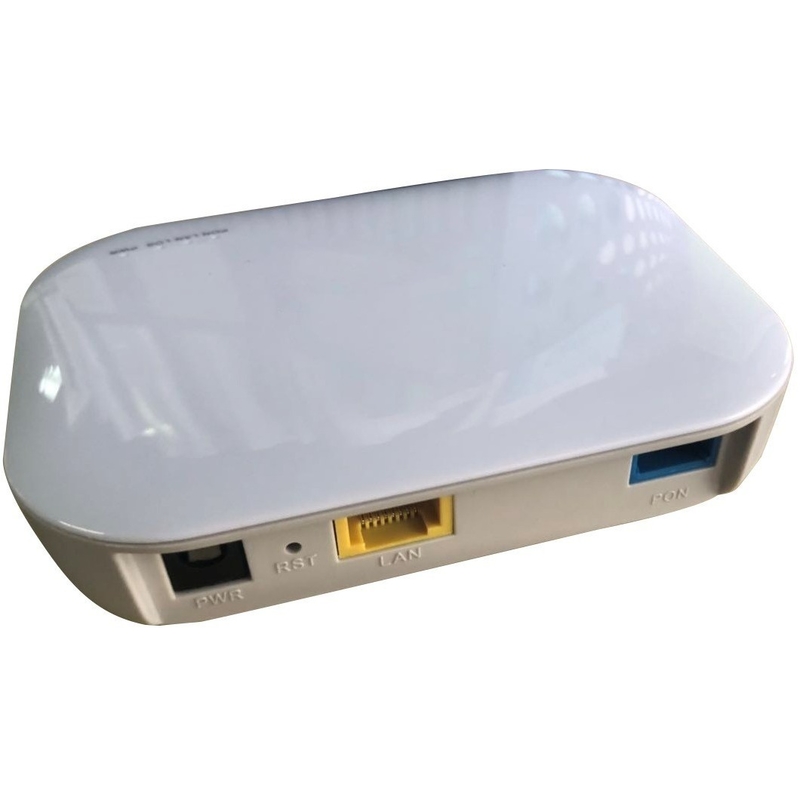

900Mbps GPON ONT 1 GE Port FHR2100GZB Non Blocking Switching
  • 900Mbps GPON ONT 1 GE Port FHR2100GZB Non Blocking Switching

900Mbps GPON ONT 1 GE Port FHR2100GZB Non Blocking Switching

Place of Origin CHINA
Brand Name DAWNERGY
Certification CE,FCC
Model Number FHR2100GZB
Product Details
Name:
GPON ONT
Brand:
Dawnergy
Fiber Port:
1 GPON Interface, SC Single-mode/single-fiber
Downstream Rate:
2.5Gbps
Upstream Rate:
1.25Gbps
Wavelength:
Tx 1310nm, Rx 1490nm
Fiber Interface:
SC/PC
Throughput:
900Mbps Or More
High Light:

GPON Non Blocking Network Unit

,

1 GE Port Non Blocking Switching

,

900Mbps Non Blocking Switching

Payment & Shipping Terms
Minimum Order Quantity
100pcs
Price
25USD
Packaging Details
Carton Box
Delivery Time
15 working days
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
2K Per Day
Product Description

900Mbps GPON ONT 1 GE Port FHR2100GZB Non Blocking Switching



Characteristics



l Plug and play, integrate auto detection, auto configuration and auto firmware upgrading;

l Support diagnostic monitoring and remote disabling of fiber optical;

l Full speed 1G non-blocking switching;

l 2048 MAC address table;

l Integrated port monitoring, port mirroring, port rate limiting, port SLA, etc.

l Support auto polarity detection of Ethernet ports (AUTO MDIX);

l Integrated IEEE802.1p QoS with four level priority queues;

l Supports mixed network with mainstream OLT to minimize operators' network construction costs;

l With the industry's most advanced technology, it has powerful functions and QoS guarantees in Ethernet services;

l Desktop devices take up less space and consume less power.



Specification



Technical items Descriptions
Dimension 100*65*20mm(length*width*height)
Net weight ≤0.1Kg
Fiber port

1 GPON interface, SC single-mode/single-fiber,

Downstream rate 2.5Gbps, Upstream rate 1.25Gbps

Wavelength Tx 1310nm, Rx 1490nm
Fiber interface SC/PC
RX sensitivity <-28dBm (1490nm)
LAN 1*10/100/1000Mbps adaptive Ethernet ports, full/half duplex, RJ45 interface
Throughput Throughput can reach 900Mbps or more
DC power 5V 1A, external AC-DC power adapter
Button Reset, power
Power ≤8W
Operation Working temperature: -5〜+55℃ working humidity:10〜90%(non-condensation)
Storage Storage temperature: -30℃〜+60℃ storage humidity: 10〜90%(non-condensation)
