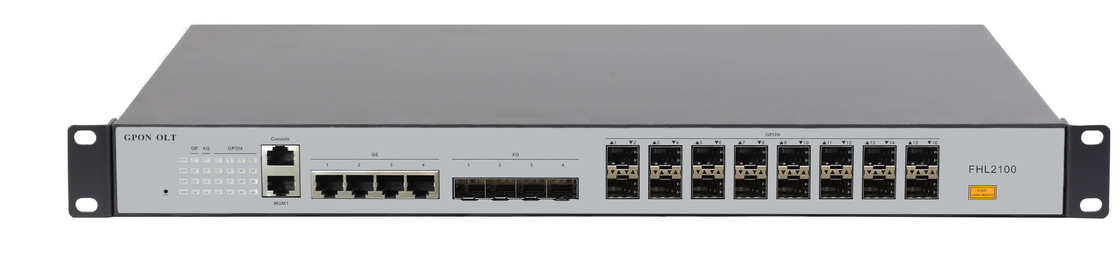

GPON OLT 16*PON / 4*GE / 4*10G SFP+ FHL2100-16
  • GPON OLT 16*PON / 4*GE / 4*10G SFP+ FHL2100-16

GPON OLT 16*PON / 4*GE / 4*10G SFP+ FHL2100-16

Place of Origin CHINA
Brand Name DAWNERGY
Certification CE,FCC
Model Number FHL2100-16
Product Details
Switching Capacity:
168Gbps
MAC:
64K
Ports:
16*PON Port,4*10G SFP+, 4*GE TX
Power Supply:
AC:Input 85~264V,47~63Hz; DC:Input -36V~-75V;
Power Consumption:
≤80W
High Light:

8PON GPON OLT

,

4GE GPON OLT

,

128Gbps gpon olt ont

Payment & Shipping Terms
Minimum Order Quantity
10pcs
Price
269USD
Packaging Details
Carton Box
Delivery Time
15 working days
Payment Terms
T/T, L/C, D/A, D/P
Supply Ability
2K Per Day
Product Description



Overview



The FHL2100 series is a high-density 1U box GPON OLT series. It uses the industry-leading commercial chip to fully support the ITU-T G.988 GPON technology standard. It can realize ONU hybrid networking of different manufacturers and has good interoperability. The FHL2100-16 system has good stability and high reliability. It supports multiple management modes such as CLI & SNMP. The graphical management interface is clear, friendly and easy to use. FHL2100-16 provides 16 downstream GPON ports, 4*1000Base-T up-link ports and 4*10G optical SFP+ up-link ports, The SFP+ port with an expansion function, which can adapt to 1GE SFP or 10GE SFP+. The FHL2100-16 adopts the industrial advanced technology, with powerful Ethernet services and QoS feature, supporting SLA and DBA. The splitting ratio up to 1:128, supporting different types of ONU in different networks, minimizing operators' investments. The 1U height can be easy to install and maintain. It is an excellent choice for operators to quickly deploy FTTH networks using GPON technology.



Characteristics

  • Applicable to county and town level fiber optic network access and monitoring transmission, meets FTTH requirements to provide complete access to IP telephony, broadband data, IPTV, etc;
  • System Structure: Provide 16 downstream GPON ports, 4*1000Base-T up-link ports and 4*10GE optical SFP+ up-link ports.
  • The SFP+ port with an expansion function, which can adapt to 1GE SFP or 10GE SFP+.
  • System Capacity: 1:128 split ratio, full configuration supports up to 2048 GPON terminals.
  • Up-link Interface: Flexible design supports multiple types network interfaces, optical or electrical interfaces optional based on network conditions.
  • Supports dual power supply.
  • 1U device takes small space, low power consumption, which reduce the total cost.

Specification



Item FHL2100-16
Switching capacity 168Gbps
Mac Address 64K
Ports 16*PON port,4*10G SFP+, 4*GE TX
Power redundancy Dual power supply. Can be double AC, double DC or AC+DC
Power supply

AC:Input 85264V,4763Hz

DC:Input -36V-75V

Maximum Power 80W

Outline dimensions

(mm) (W*D*H)

440mm×310mm×44mm

Weight

(in maximum configuration)

5kg

Environmental

requirements

Working temperature:-10°C50°C

Storage temperature:-40°C85°C

Relative humidity:5%95%,no condensing





Item FHL2100-16
PON features GPON

Satisfy ITU -T standard

High splitter rate, each PON port supports 128*ONU

Maximum transmission distance of 20KM

Support uplink FEC, downlink FEC(Forward Error Correction)

ONU identifier authentication :SN /SN+PASSWD/LOID

Bandwidth allocation mechanism

5 types of T-CONT bandwidth

Static Bandwidth Allocation

Dynamic Bandwidth Allocation

L2 features MAC

MAC Black Hole

Port MAC Limit

VLAN

4K VLAN entries

Port-based/MAC-based/IP subnet-based VLAN

Port-based QinQ and Selective QinQ (StackVLAN)

VLAN Swap and VLAN Remark and VLAN Translate

Based on ONU service flow VLAN add, delete, replace

Protocol STP, RSTP, MSTP
Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring and traffic mirroring

L3 features Protocol OSPF, IS-IS, BGP
Security features User Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binds to port and port MAC address filtration

IEEE 802.1x and AAA/Radius authentication

TACACS+ authentification

dhcp anti-attack flood attack automatic suppression

ONU isolation control

Device security

Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

Supports IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location

Plaintext authentication of OSPF,RIPv2 and MD5 cryptograph authentication

IP routing IPv4

ARP Proxy

DHCP Relay

DHCP Server

Static route

IPv6

ICMPv6

ICMPv6 redirection

DHCPv6

ACLv6

Configured Tunnel

6to4 tunnel

IPv6 and IPv4 Tunnels

Service features ACL

Standard and extended ACL

Time Range ACL

Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic

Support packet filtration of L2L7 even deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

CAR(Committed Access Rate),Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR.

Congestion avoid mechanism,including Tail-Drop and WRED

Multicast

IGMPv1/v2/v3

IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy

MLDv2/MLDv2 Snooping

Reliability Loop protection

EAPS and GERP (recover-time <50ms)

Loopback-detection

Link protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

Device protection

Double fault-tolerant backup of host program and configuration files

1+1 power hot backup

Maintenance Network maintenance

Telnet-based statistics

RFC3176 sFlow

LLDP

802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device management

Web management

Console/Telnet, Command-line interface(CLI)

Upgrade via FTP

System configuration with SNMPv1/v2/v3

RMON (Remote Monitoring)

Support SNTP network time protocol
