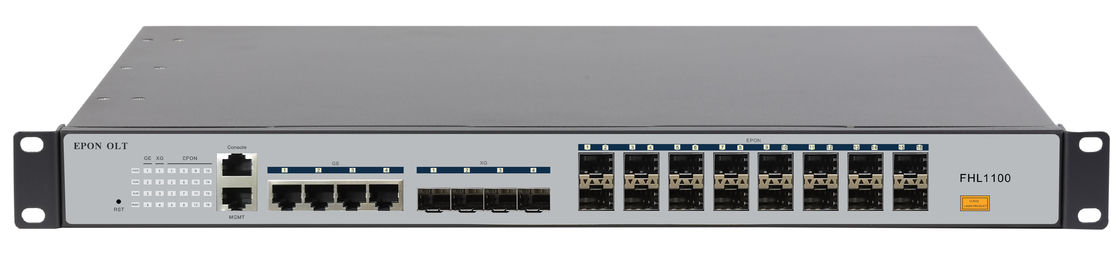

EPON OLT 16PON 4GE 4x10G SFP FHL1100-16 Optical Line Terminal

Basic Information
Place of Origin: CHINA
Brand Name: DAWNERGY
Certification: CE,FCC
Model Number: FHL1100-16
Minimum Order Quantity: 10pcs
Price: 299USD
Packaging Details: Carton Box
Delivery Time: 15 working days
Payment Terms: T/T, L/C, D/A, D/P
Supply Ability: 2K Per Day
Switching Capacity: 120 Gbps MAC: 32K
Ports: 16*PON Port,4*10G SFP+, 4*1000Base-T Power Supply: AC:Input 85~264V,47~63Hz; DC:Input -36V~-75V
Power Consumption: ≤80W
High Light:

120Gbps FHL1100-16

,

16PON FHL1100-16

,

16PON optical line terminal

Overview



EPON OLT FHL1100-16 products fully comply with the relevant standards of IEEE802.3ah and CTC 2.0/2.1/3.0. The OLT is a 1U box device, providing 4 Gigabit uplink electrical ports, 4 SFP/SFP+ uplink optical ports, supporting 16 EPON ports, 1: 64 split ratio, full configuration supports up to 1024 terminals, which can provide 1.25Gbps downstream and 1.25Gbps upstream bandwidth.



The product is small and convenient, flexible to use, easy to deploy, and high-performance. It meets the requirements for equipment performance and volume in a compact computer room environment.



Meet the needs of access networks and enterprise networks to improve network functions, improve reliability, and reduce power consumption. The product is suitable for network applications such as "triple play" of operator networks, fiber access to resident networks, video surveillance networks, enterprise LANs, and the Internet of Things.



Characteristics

Specification



Item FHL1100-8
Switching capacity 120 Gbps
MAC 32 K
Ports 16*PON port,4*10G SFP+, 4*1000Base-T
Power redundancy Dual power supply. Can be double AC, double DC or AC+DC
Power supply

AC:Input 85264V,4763Hz

DC:Input -36V-75V

Power consumption 80W

Outline dimensions

(mm) (W*D*H)

440mm×310mm×44mm

Weight

(in maximum configuration)

5kg

Environmental

requirements

Working temperature:-10°C50°C

Storage temperature:-40°C85°C

Relative humidity:5%95%,no condensing





Item FHL1100-8
PON features EPON

IEEE 802.3ah standards , CTC 2.0/2.1/3.0 standards

Support standrad OAM and extended OAM

High splitter rate, each PON port supports 64*ONU

Maximum transmission distance of 20KM

Compatible with third-party ONU access

Support multiple LLID configuration and single LLID configuration

Supports autofind, authorization, configuration, and remote upgrade of ONUs

ONU upstrem and downstream speed limit etc.

L2 features MAC

MAC Black Hole

Port MAC Limit

VLAN

4K VLAN entries

Port-based/MAC-based/IP subnet-based VLAN

Port-based QinQ and Selective QinQ (StackVLAN)

VLAN Swap and VLAN Remark and VLAN Translate

Based on ONU service flow VLAN add, delete, replace

Protocol STP, RSTP, MSTP
Port

Bi-directional bandwidth control

Static link aggregation and LACP(Link Aggregation Control Protocol)

Port mirroring and traffic mirroring

L3 features Protocol OSPF, IS-IS, BGP
Security features User Security

Anti-ARP-spoofing

Anti-ARP-flooding

IP Source Guard create IP+VLAN+MAC+Port binding

Port Isolation

MAC address binds to port and port MAC address filtration

IEEE 802.1x and AAA/Radius authentication

dhcp anti-attack flood attack automatic suppression

ONU isolation control

Device security

Anti-DOS attack(such as ARP,Synflood, Smurf, ICMP attack), ARP detection, worm and Msblaster worm attack

SSHv2 Secure Shell

SNMP v3 encrypted management

Security IP login through Telnet

Hierarchical management and password protection of users

Network security

User-based MAC and ARP traffic examination

Restrict ARP traffic of each user and force-out user with abnormal ARP traffic

Dynamic ARP table-based binding

Supports IP+VLAN+MAC+Port binding

L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet

Port-based broadcast/multicast suppression and auto-shutdown risk port

URPF to prevent IP address counterfeit and attack

DHCP Option82 and PPPoE+ upload user’s physical location

Plaintext authentication of OSPF,RIPv2 and MD5 cryptograph authentication

IP routing IPv4

ARP Proxy

DHCP Relay

DHCP Server

Static route

IPv6

ICMPv6

ICMPv6 redirection

DHCPv6

ACLv6

Configured Tunnel

6to4 tunnel

IPv6 and IPv4 Tunnels

Service features ACL

Standard and extended ACL

Time Range ACL

Packet filter providing filtering based on source/destination MAC address, source/destination IP address, port, protocol, VLAN, VLAN range, MAC address range, or invalid frame. System supports concurrent identification at most 50 service traffic

Support packet filtration of L2L7 even deep to 80 bytes of IP packet head

QoS

Rate-limit to packet sending/receiving speed of port or self-defined flow and provide general flow monitor and two-speed tri-color monitor of self-defined flow

Priority remark to port or self-defined flow and provide 802.1P, DSCP priority and Remark

CAR(Committed Access Rate),Traffic Shaping and flow statistics

Packet mirror and redirection of interface and self-defined flow

Super queue scheduler based on port and self-defined flow. Each port/ flow supports 8 priority queues and scheduler of SP, WRR and SP+WRR.

Congestion avoid mechanism,including Tail-Drop and WRED

Multicast

IGMPv1/v2/v3

IGMPv1/v2/v3 Snooping

IGMP Filter

MVR and cross VLAN multicast copy

IGMP Fast leave

IGMP Proxy

MLDv2/MLDv2 Snooping

Reliability Loop protection

EAPS and GERP (recover-time <50ms)

Loopback-detection

Link protection

FlexLink (recover-time <50ms)

RSTP/MSTP (recover-time <1s)

LACP (recover-time <10ms)

Device protection

VRRP host backup

Double fault-tolerant backup of host program and configuration files

1+1 power hot backup

Maintenance Network maintenance

Telnet-based statistics

RFC3176 sFlow

LLDP

802.3ah Ethernet OAM

RFC 3164 BSD syslog Protocol

Ping and Traceroute

Device management

Web management

Console/Telnet, Command-line interface(CLI)

Upgrade via FTP

System configuration with SNMPv1/v2/v3

RMON (Remote Monitoring)

Support SNTP network time protocol
